Place of Origin:
Hefei，Anhui，China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
TLDK3000100-SKD

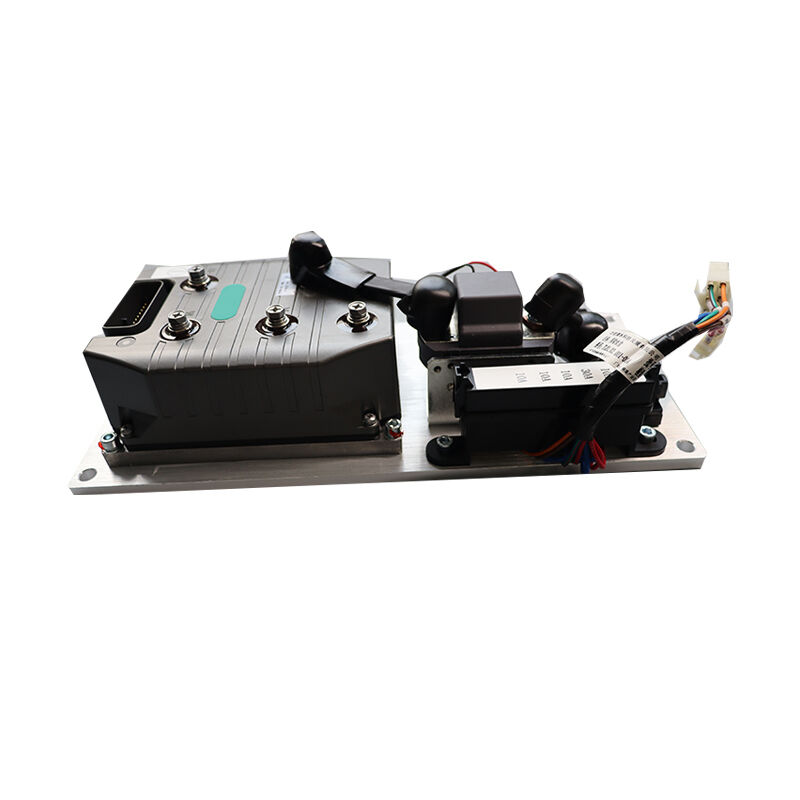

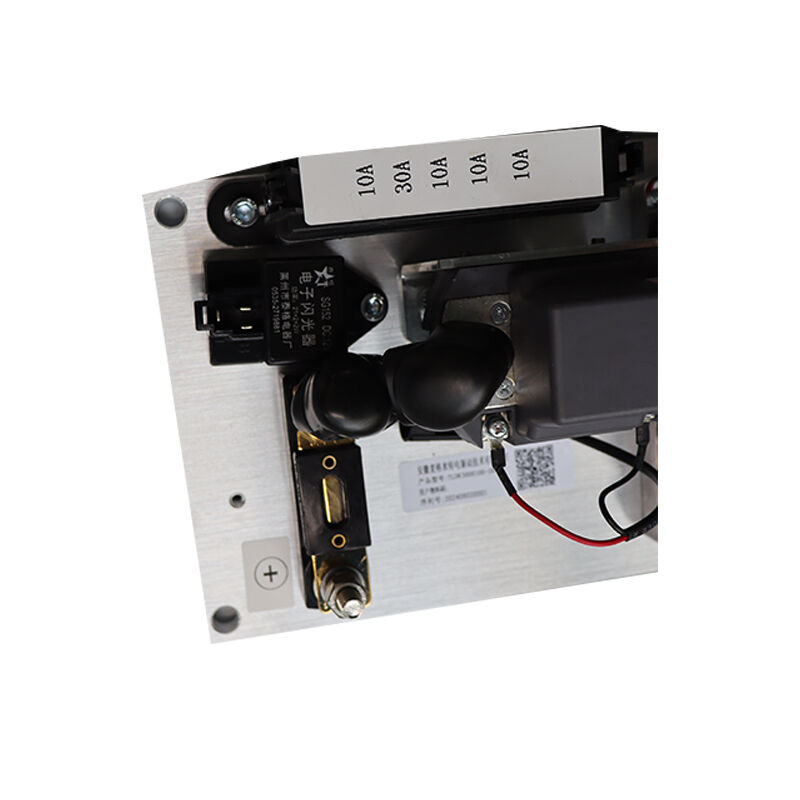

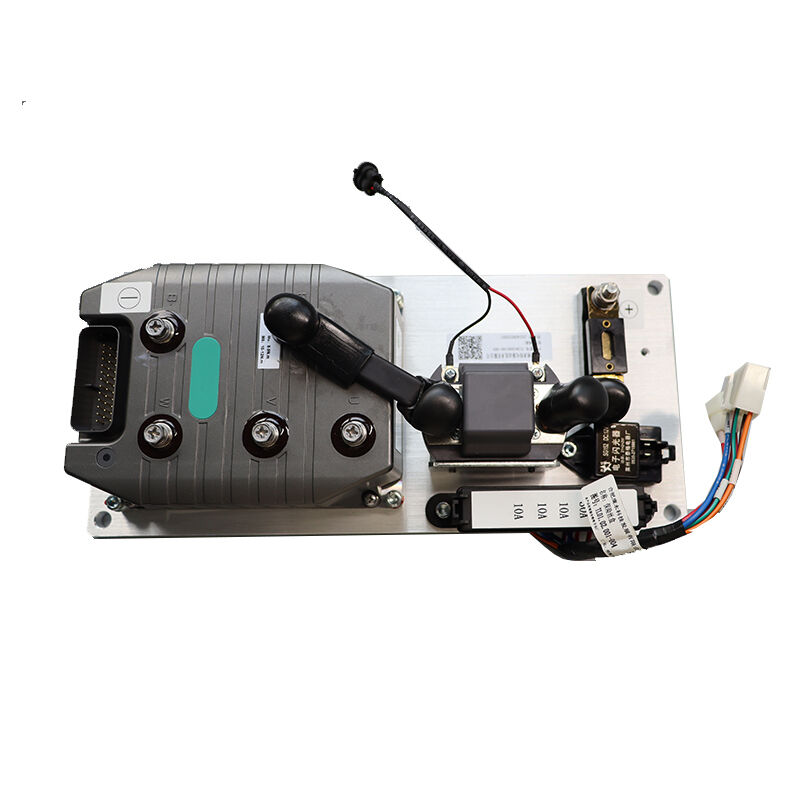

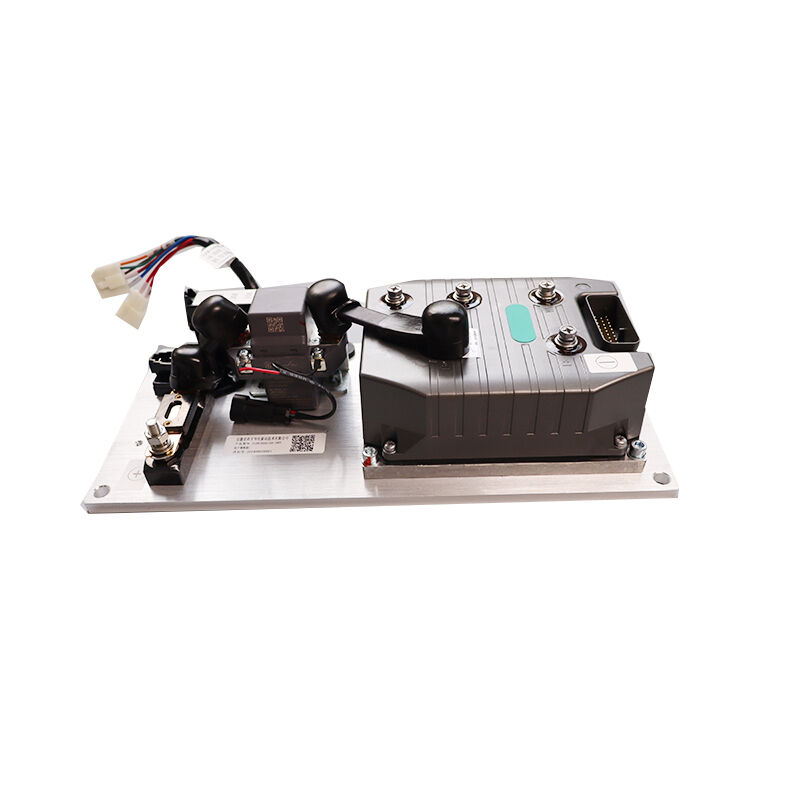

TLDK3000100-SKD Forklift DCDC Converter - Rich Interface Expansion Low-Battery Intelligent Alarm DC Conversion Module
The TLDK3000100-SKD forklift DCDC converter is a DC conversion module with rich interface expansion and equipped with intelligent low-battery alarm. This forklift DCDC converter is designed with multiple signal and communication interfaces, enabling it to easily connect to vehicle networking terminals, instruments, and other peripherals, thereby expanding the electrical control functions of the entire vehicle. The forklift DCDC converter is equipped with a low-battery intelligent alarm mechanism, which issues an early warning when the voltage is too low, preventing potential power outages.
The forklift DCDC converter adopts a high-efficiency conversion architecture, with low operating losses and stable temperature rise, meeting the long-term continuous operation requirements of forklifts. The forklift DCDC converter uses non-contact switch technology and is combined with pre-charge protection function, buffering the power-on shock and effectively extending the service life of the forklift DCDC converter. The forklift DCDC converter supports full-dimensional data monitoring and can be flexibly remotely controlled, enabling data storage and export.
The forklift DCDC converter is structurally shock-resistant and dust-proof, suitable for dust and vibration working conditions in factory areas, and widely compatible with various electric forklifts. The forklift DCDC converter can continuously collect power supply parameters, facilitating data analysis by maintenance personnel. With its outstanding expansion performance and intelligent warning capabilities, the forklift DCDC converter integrates into the forklift Internet of Things control system. The forklift DCDC converter provides stable and safe DC power supply guarantee for the entire vehicle's electrical components.
| Input Voltage Range | 45V-100V |
| Rated Output Voltage | 12.5V |
| Rated Output Current | 10A |
| Rated Output Power | 125W |
| Connector Model | DJ7061-6.3-21 |
| Protection Level | IP65 |
1. Wide input voltage and efficient output: The wide input voltage of 45-100V is adapted to the fluctuations of industrial batteries, and the ultra-high conversion efficiency of over 95% effectively saves energy and reduces heat consumption.
2. Comprehensive circuit protection mechanism: Integrated input and output bidirectional multiple protection (feedback, undervoltage, overpower, overcurrent), ensuring the safe operation of power supply and load equipment in harsh environments.
3. Industrial-grade functional integration: Supports automatic gate opening control and can be optionally equipped with a combined CC and GCC function to meet the complex functional requirements of industrial equipment and simplify the system architecture.
4. Outstanding load adaptability: Excellent load balancing capability ensures high performance and stability under different load conditions, extending the equipment's lifespan.
5. Robust physical structure: Utilizing industrial standard connectors and installation dimensions, the structure is sturdy, ensuring high reliability and long service life in harsh industrial environments such as vibration and shock.
Q: What is the function and application of DC DC Converter TLDK3000100-SKD?
A: TLDK3000100-SKD is an efficient and reliable industrial-grade DC-DC conversion power supply. This forklift DC DC converter features a wide input voltage range of 45-100V, a stable output of 12.5V/10A, and a rated power of 125W. The product integrates multiple protections such as input feedback, under-voltage protection, and output overpower and overcurrent protection, with an efficiency of over 95%. It can also be optionally equipped with a combined CC and GCC function, making it an ideal power solution for industrial equipment such as electric forklifts.
Q:What quality standards and certifications does our DC DC Converter TLDK3000100-SKD comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of DC DC Converter TLDK3000100-SKD?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
