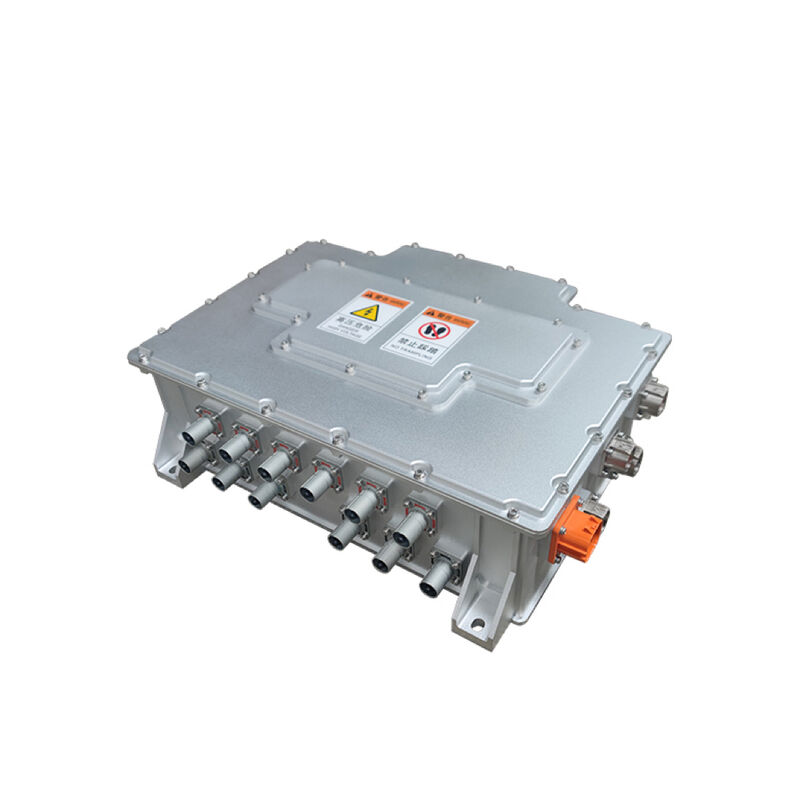

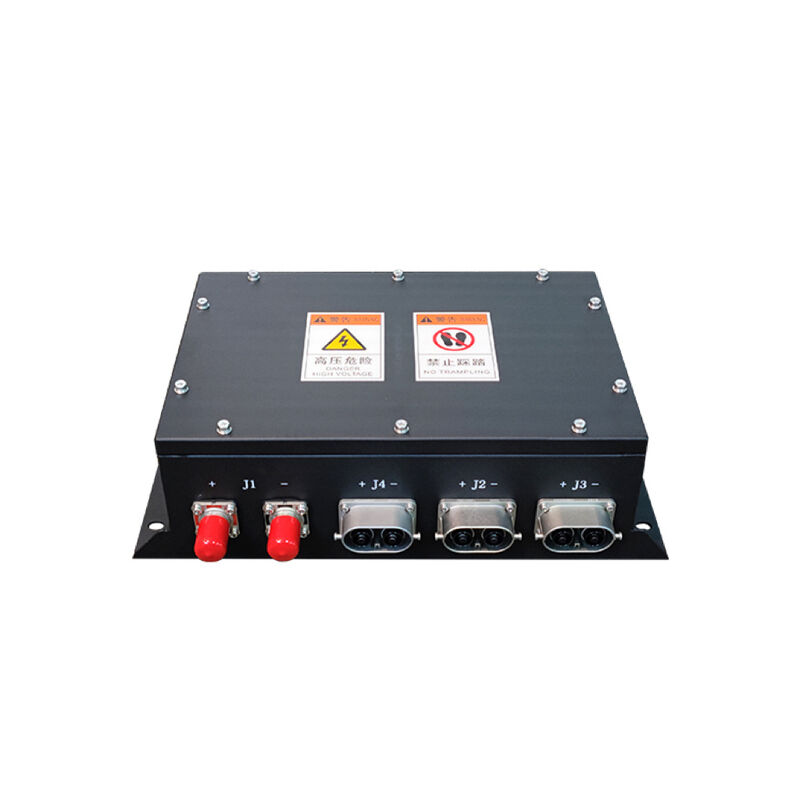

Name: Shinny Intelligent Vehicle PDU / BDU – High‑Voltage Power Distribution Unit Industrial Vehicles Forklift PDU
Brand: Shinny Instrument Control Technology Co.,Ltd.
SKU: XL-PDU1, XL-BDU1
Availability: InStock

Σπίτι > προϊόντα > Forklift PDU >

Shinny Intelligent Vehicle PDU / BDU – High‑Voltage Power Distribution Unit Industrial Vehicles Forklift PDU

Shinny Intelligent Forklift PDU

Shinny BDU Forklift PDU

High Voltage Forklift PDU

Τόπος καταγωγής:

Hefei, Anhui, Κίνα

Μάρκα:

Shinny

Πιστοποίηση:

EMC、RoHs、CE、UL

Αριθμό μοντέλου:

XL-PDU1, XL-BDU1

Έγγραφο:

Intelligent PDU Solutions f...on.pdf

Συνομιλία τώρα

Ζητήστε ένα απόσπασμα

Λεπτομέρειες προϊόντος

Ονομαστική τάση:

48V / 72V / 96V / 144V / 300V–800V (Προσαρμοσμένο)

Ονομαστικό ρεύμα:

150A / 200A / 250A / 300A / 400A

Θερμοκρασία εργασίας:

-40 ° C ~ +85 ° C

Βαθμός προστασίας:

IP67

Υλικό στέγασης:

Λαμαρίνα / Πλαστικό Μηχανικής / Χυτό Αλουμίνιο

Ανακοίνωση:

CAN 2.0B / Υποστήριξη προσαρμοσμένου πρωτοκόλλου

Χαρακτηριστικά Ασφαλείας:

Προφόρτιση / Υπερένταση / Υπέρταση / Υπερτάση / Βραχυκύκλωμα / Προστασία Ασφάλειας

Πιστοποιήσεις:

IATF16949, CE, RoHS, EMC, ISO

Επισημαίνω:

Shinny Intelligent Forklift PDU

Shinny BDU Forklift PDU

High Voltage Forklift PDU

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Τιμή

Send Message To Me For Price!

Συσκευασία λεπτομέρειες

Τυπική συσκευασία: Τυλιγμένο σε περιτύλιγμα με φυσαλίδες που απορροφά τους κραδασμούς και συσκευασμέ

Χρόνος παράδοσης

15-25 ημέρες

Όροι πληρωμής

L/C,D/A,D/P,T/T

Δυνατότητα προσφοράς

2000 μονάδα το μήνα

Συγγενικά προϊόντα

Μας ελάτε σε επαφή με

+86-19056889096

overseasales@hfxlyb.com

Συνομιλία τώρα

Περιγραφή προϊόντων

Shinny Intelligent PDU (Power Distribution Unit) and BDU (Battery Distribution Unit) are core high‑voltage power management solutions designed for the new energy industry.

PDU/BDU series integrates main power control, pre‑charge management, fuse protection, relay drive, high‑low voltage isolation, and BMS power management in one unit. They effectively coordinate with battery systems, motor controllers, DC/DC, OBC, air‑conditioning controllers, and other vehicle components to improve system stability, extend service life, and reduce failure risks.

With IP67 protection, EMC compliance, and wide temperature resistance, they adapt to harsh working environments such as industrial forklifts, construction machinery, commercial vehicles, battery swap systems, marine power, and energy storage containers. Shinny supports full customization from voltage, current, interface, communication protocol to mechanical structure, helping customers optimize layout, save space, and lower overall vehicle costs.

Key Product Advantages

Modular & Custom Design	Wide current range: 150A ~ 400A customizable Voltage platform: 48V / 72V / 96V / 144V / 300V–800V Flexible I/O, connector, and mounting solutions Reduce redundant design and shorten development cycle
High Integration & Intelligent Control	Integrated BMS power management system Supports CAN bus communication with VCU / BMS / MCU One‑stop power distribution + control + protection Simplify vehicle wiring and improve system reliability
Automotive‑Grade Safety & Reliability	Multiple protection: overcurrent, overvoltage, undervoltage, short circuit, pre‑charge High‑low voltage electrical isolation design IP67 waterproof and dustproof Anti‑vibration, anti‑salt spray, high and low temperature endurance
Superior Manufacturing & Testing	IATF16949, CE, RoHS, EMC certified In‑house reliability lab: EMC, vibration, temperature shock, salt mist, IP test Lean production, full‑process quality control (IQC → IPQC → OQC) AOI automatic optical inspection, high‑temperature aging test
Strong Compatibility & Scalability	Compatible with motor controller, DC/DC, OBC, PTC, air‑conditioning controller Expandable with additional control loops Adapt to forklifts, buses, swap stations, energy storage, ships, etc.

Applications

Electric forklifts & industrial engineering vehicles
Battery swap passenger vehicles & commercial vehicles
Unmanned shuttle buses & sightseeing vehicles
Mobile power supply vehicles
Marine outboard motor power systems
Battery energy storage standard containers
New energy construction machinery & special vehicles

Why Choose Shinny

Established in 1996, national high‑tech enterprise
Long‑term partner of CAT, ZOOMLION, KION, Heli, etc.
91+ authorized patents, 47+ software copyrights
Full chain capability: R&D → simulation → testing → manufacturing
IATF16949, CE, RoHS, EMC certified
Global supply & technical support
Professional customized solution service
