Place of Origin:
Hefei, Anhui, China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
HZB181CAN-HL

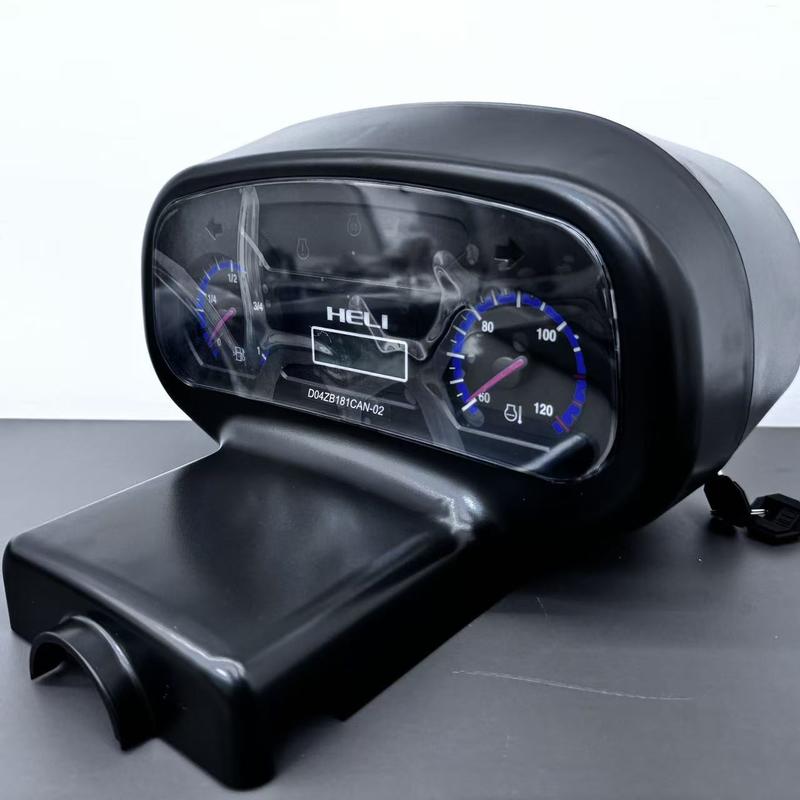

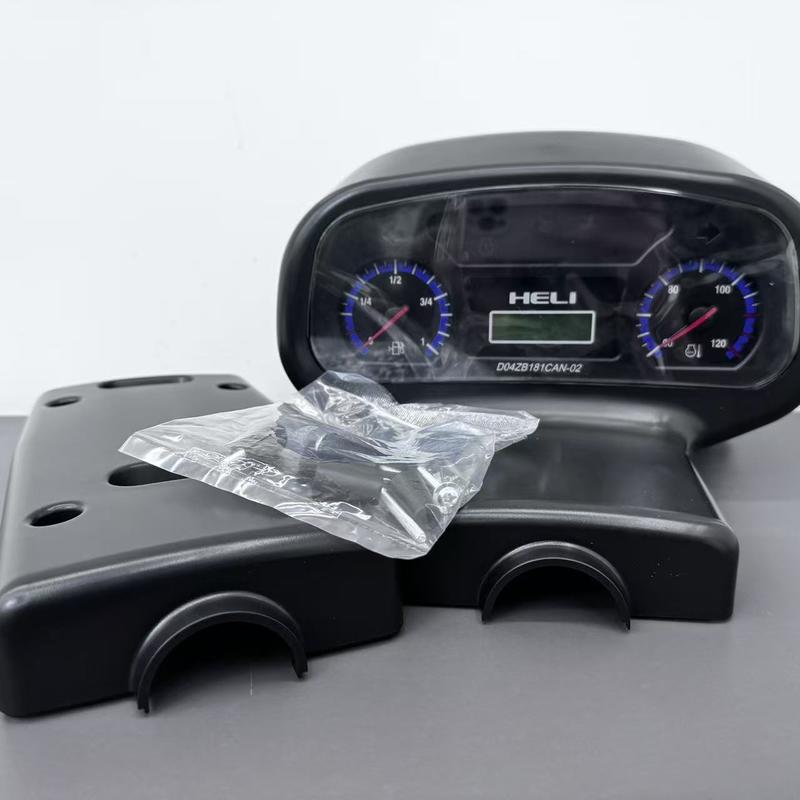

The HZB181 is a forklift dashboard that integrates classic pointer design with modern communication technology, aiming to provide clear and reliable information display solutions for commercial vehicles and construction machinery. Its display core is composed of two high-precision stepper motor Pointers, a 90-segment monochrome dot-matrix LCD screen and 11 LED indicator lights, which can comprehensively and intuitively display key parameters such as vehicle speed, rotational speed, fuel level and temperature.
This forklift dashboard has a powerful signal access capability, supporting the input and indication of 3 analog signals, 1 pulse signal and 12 switch signals (including hour meter function), and integrates 1 CAN bus communication to ensure efficient interaction with the vehicle control system. By installing an integrated vehicle networking terminal module, the HZB181 can easily upgrade its remote data intercommunication capability and be equipped with a full set of vehicle networking and advanced driver assistance functions, including communication positioning, video surveillance, data storage, card/fingerprint/facial recognition login, as well as BSD, DMS, and 360-degree surround view, achieving a leap from basic display to intelligent management. The product supports both Chinese and English interfaces and adopts a steering column installation method. Some models have passed CE certification. Its high protection level design ensures stability and long service life under complex working conditions.
|
Operating Voltage |
DC12V/DC24V |
|
Operating Temperature |
-30°C to 75°C |
|
Protection Level |
IP54 |

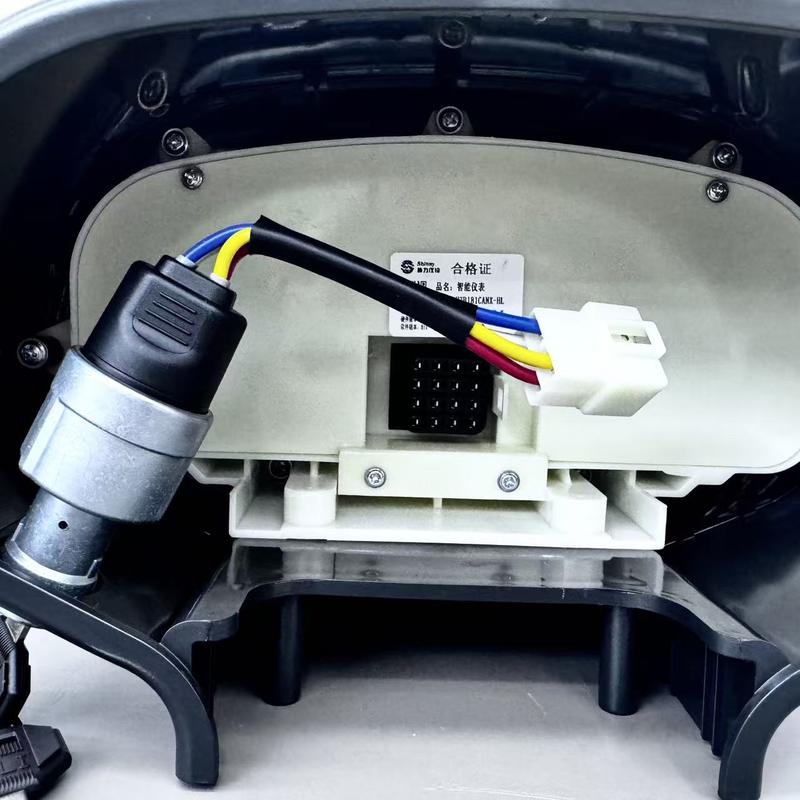

| Connector Model | DJY7161-2.2-20 16pin |

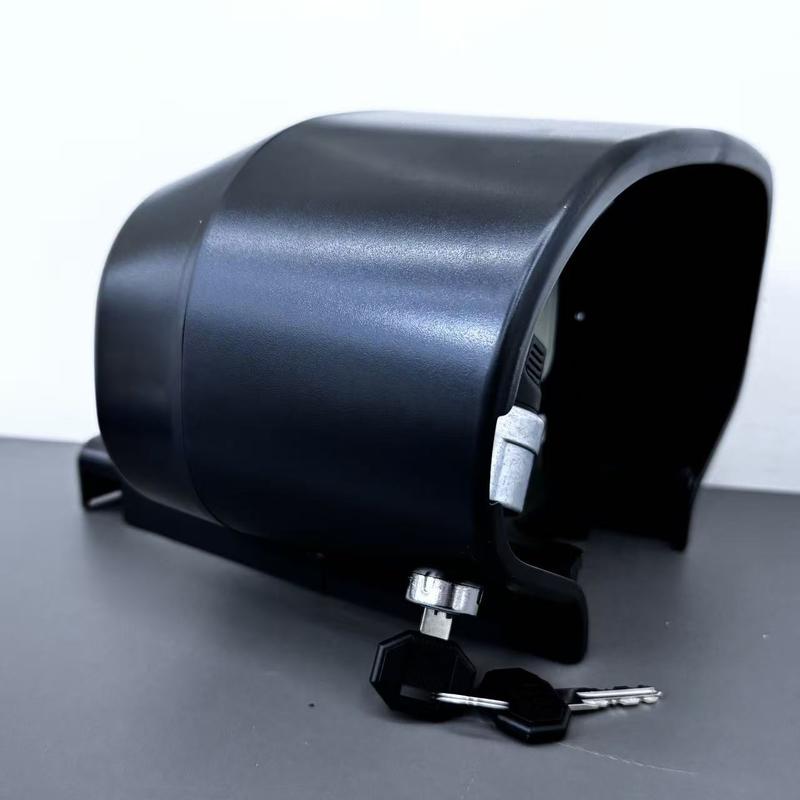

| Install Way | Steering Column Installation |
| Display Language | Chinese/English |
1. Intuitive display, stable and reliable: The combination of stepper motor pointer and dot matrix screen makes information reading clear at a glance. Compared with pure LCD instruments, it performs more stably under extreme temperatures.
2. Rich interfaces and strong scalability: Supports multiple signals and CAN communication, and can be equipped with additional modules later. Optional intelligent network connection functions can be selected to meet users' gradually upgraded needs, with high cost performance.
3. Comprehensive functions and flexible options: It offers optional solutions ranging from basic displays to a full set of vehicle networks and safety assistance systems. Users can customize flexibly based on their budget and needs.
4. Durable and internationally recognized: The high protection level design is suitable for harsh environments, and the quality meets international standards, ensuring reliability.
Q: What is the function and application of forklift dashboard HZB181CAN?
A: HZB181 is a cost-effective pointer-type combination instrument, specially designed for commercial vehicles and construction machinery. It features a monochrome dot matrix screen, a combination of stepper motor Pointers and LED indicator lights for display. It supports multiple signal inputs and CAN communication, and can be optionally equipped with a variety of vehicle network functions. The product features a multi-language interface and a high protection level. Some models have passed the CE certification, meeting the information display and intelligent upgrade requirements of basic vehicles with stable and reliable performance.
Q:What quality standards and certifications does our forklift dashboard HZB181CAN comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of forklift dashboard HZB181CAN?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
