Place of Origin:
Hefei, Anhui, China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
CDJ024-02-012TA-NL

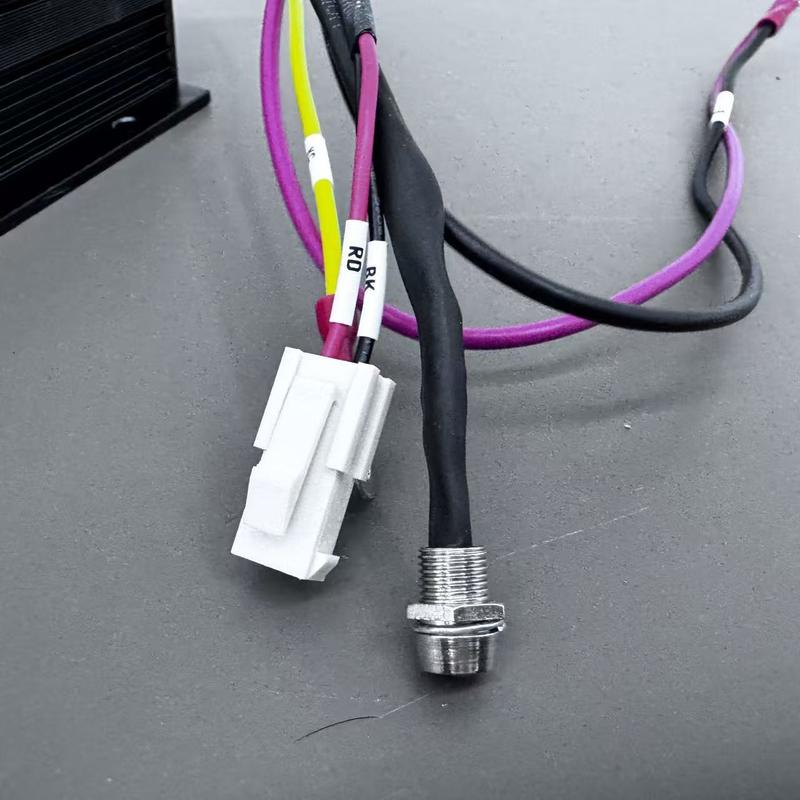

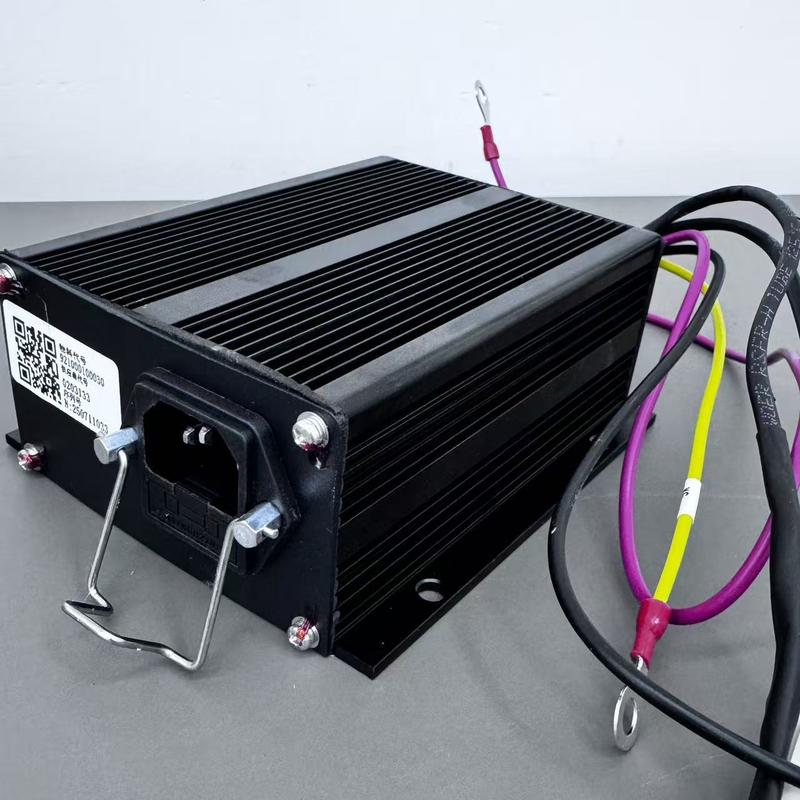

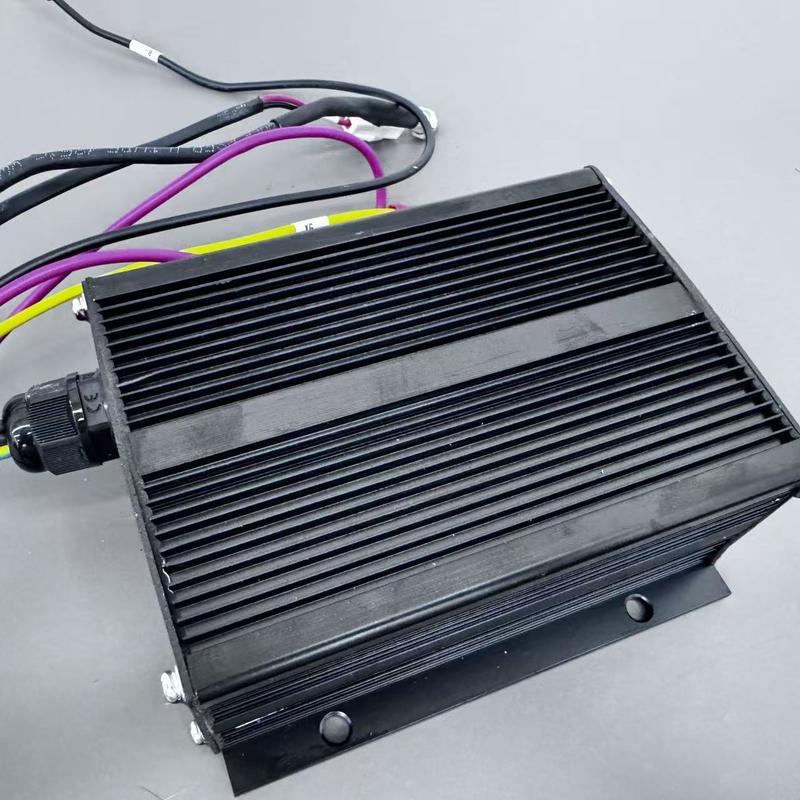

CDJ024-02-012TA-NL forklift charger is a high-performance and multi-functional battery charging device with an input voltage range of 100 to 240VAC. It is compatible with the mainstream global power grid standards and has wide applicability. Its maximum output power is 240W, the highest output voltage reaches 16±0.5V, and the maximum output current is 15±0.5A, which can meet the fast charging requirements of large-capacity batteries. The product performs exceptionally well in terms of safety, featuring a 1500VAC withstand voltage for input-to-output, input-to-housing, and output-to-housing. The insulation resistance is no less than 10MΩ under a 500VDC test condition, effectively ensuring electrical safety during use.
In addition, the forklift charger integrates multiple protection mechanisms such as overcurrent limit, output short-circuit protection, reverse connection protection, temperature protection and overvoltage protection, which can cope with various abnormal working conditions. Its intelligent functions include automatic shutdown when the battery is fully charged and timed shutdown, combined with LED charging status indication, making the operation more intuitive and convenient. Whether for industrial applications or daily use, this product provides users with a safe and stable charging experience featuring high reliability, high efficiency and comprehensive protection.
| Input Voltage Range (VAC) | 100V-240V/50HZ |
| Maximum Output Power | 240W |
| Maximum Output Voltage (VDC) | 16±0.5V |
| Maximum Output Current | 15±0.5A |
| Input Withstand Voltage To Output Voltage | 1500VAC(2100VAC)/3s, Leakage Current≤3A |
| Input the Pressure Resistance of the Housing | 1500VAC(2100VAC)/3s, Leakage Current≤5A |
| Output the Withstand Voltage of the Housing | 1500VAC(2100VAC)/3s, Leakage Current≤5A |
1. Wide voltage input: Supports 100-240VAC input, adaptable to different regional power grids, and easy to use.
2. High-efficiency output performance: Maximum output power of 240W, output voltage of 16V, current of 15A, meeting the requirements of high-power charging.
3. Comprehensive safety protection: Integrated overcurrent, short circuit, reverse connection, overvoltage and temperature protection, effectively preventing damage to equipment and batteries.
4. High insulation and withstand voltage: The withstand voltage between input and output and the housing reaches 1500VAC, with an insulation resistance of ≥10MΩ, ensuring high safety.
5. Intelligent control functions: Equipped with automatic shutdown upon full charge, timed shutdown and LED status indication, enhancing user experience and energy efficiency.
Q: What is the function and application of Forklift Charger CDJ024-02-012TA-NL?
A: This forklift charger adopts a wide voltage input (100-240VAC), with a maximum output power of 240W, a maximum output voltage of 16V, and a maximum output current of 15A. The product is equipped with multiple safety protection functions, including overcurrent, short circuit, overvoltage and temperature protection, and supports automatic shutdown when the battery is fully charged. It has excellent insulation performance and meets the 1500VAC withstand voltage standard, making it suitable for safe and efficient charging of all types of batteries.
Q:What quality standards and certifications does our Forklift Charger CDJ024-02-012TA-NLcomply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of Forklift Charger CDJ024-02-012TA-NL?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
