Place of Origin:
Certification Support, Customizable Services
Brand Name:
Shinny
Certification:
Hefei, Anhui, China
Model Number:
DZB1261
This series of products has maintained the top market share in the industry for years. Based on systems such as RTOS, HarmonyOS, and Linux, we have developed a full range of construction machinery instrument products covering 2.8 inches to 12.3 inches.
These products realize basic functions including instrument display, communication, and card swiping login, and support expansion of 4G/5G communication, GPS/Beidou positioning, and other functions. High-end products can achieve on-vehicle video monitoring, face recognition, DMS (Driver Monitoring System), BSD (Blind Spot Detection), and other advanced features. Additionally, personalized customized design is available according to user requirements.
|
Application Scenarios |
Electric forklifts, tractors, sightseeing carts, golf carts, etc. |
|
Display Screen |
5-inch full-lamination color LCD with full viewing angle |
|
Resolution |
800*480 |
|
Operating Temperature |
-30℃ ~ +80℃ |
|
Operating Voltage |
+8 ~ 110V |
|
Protection Grade |
IP65 |
1,32-bit Cortex-M3 main control chip, supports multi-language display;
2,Supports 6-key operation + card swiping function, and allows parameter configuration of electronic control systems;
3,1-channel CAN interface, plus digital input and analog input.

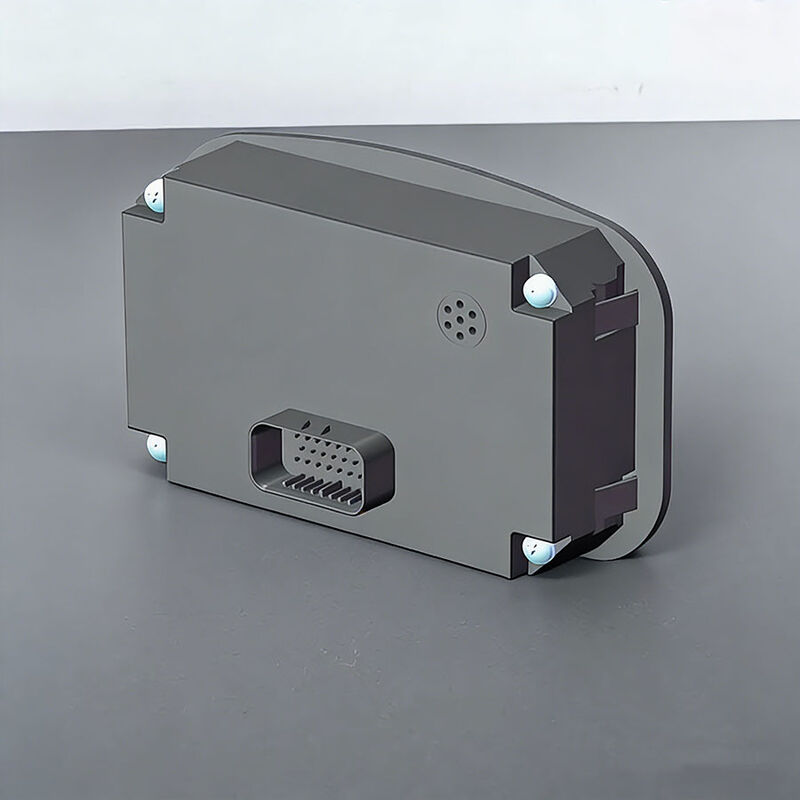

Q: What is the function and application of 5-inch Intelligent Color Screen Instrument?
A:This intelligent color screen instrument adopts a 5-inch full-lamination color LCD with full viewing angle, featuring a resolution of 800*480. It is equipped with a 32-bit Cortex-M3 main control chip, supports multi-language display, 6-key operation + card swiping function, and parameter configuration of electronic control systems. Additionally, it comes with 1-channel CAN interface, as well as digital input and analog input.
Q:What quality standards and certifications does our 5-inch Intelligent Color Screen Instrument comply with?
A:We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of 5-inch Intelligent Color Screen Instrument
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
