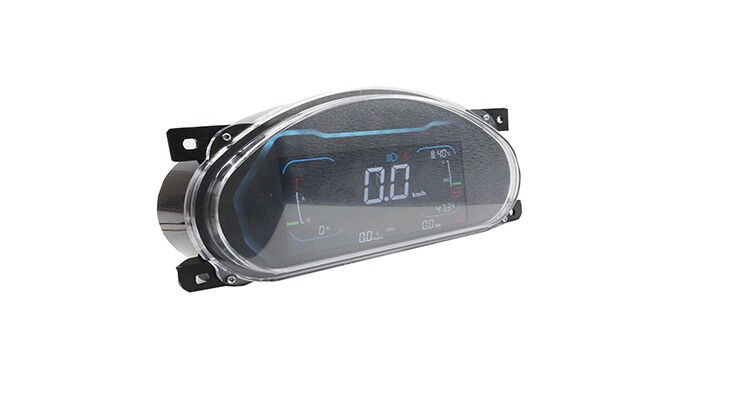

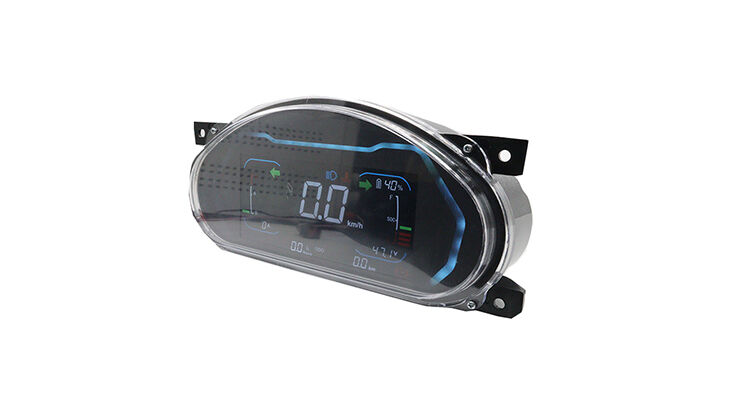

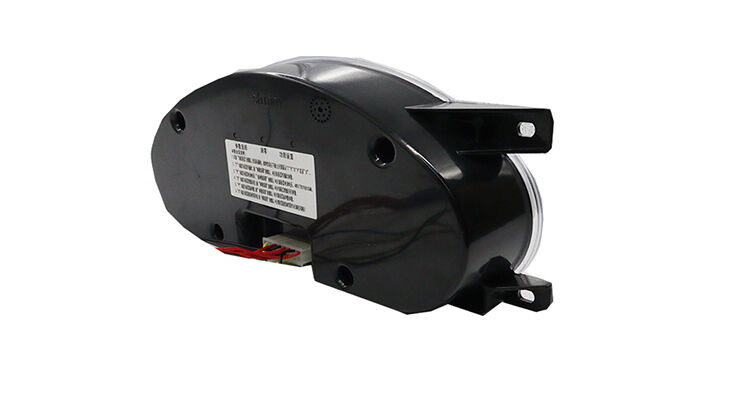

IP54 Waterproof Digital LCD Display Forklift Dashboard with Universal Compatibility for Industrial Electric Vehicles

Intelligent vehicle-mounted combined dashboard, multi-functional digital display dashboard, battery level display dashboard

The industrial electric vehicle integrated dashboard is an all-in-one intelligent digital display dashboard assembly specially designed for electric forklifts, warehouse stackers, pallet handling vehicles, and factory operation electric vehicles. This newly upgraded integrated dashboard completely replaces traditional decentralized instruments and messy indicator lights. This dashboard integrates core functions such as data monitoring, status display, fault alarm, and bus communication, making it the core dashboard for the electronic control display and human-machine interaction of industrial electric vehicles. This highly adaptable dashboard perfectly integrates with mainstream brands such as Massey, Hoppecke, Heli, and Hangfeng, and this high-performance dashboard can be fully applied to new vehicle assembly, maintenance replacement, and vehicle modification in various usage scenarios. It is an indispensable core dashboard component for industrial electric vehicles.

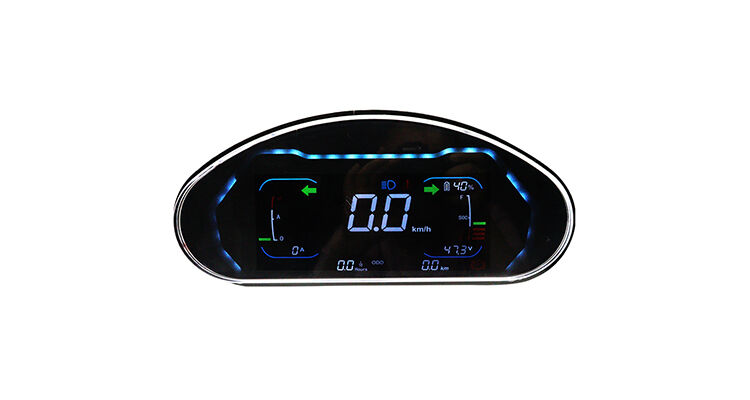

This industrial electric vehicle integrated dashboard is equipped with a high-definition digital display interface. This high-definition dashboard can accurately and real-time display core operation data such as vehicle voltage, battery capacity, driving speed, working hours, and running gear. With the high-definition display effect of this dashboard, the overall operation status of the vehicle is clear at a glance. The dashboard is equipped with an intelligent fault detection system, and the dedicated monitoring chip makes the dashboard capable of real-time identification of abnormal problems in equipment such as motors, batteries, circuits, and brakes. The dashboard will use dual warning methods of fault codes and light warnings to help operators quickly identify faults and effectively avoid safety risks of vehicles operating with faults. At the same time, this professional dashboard is compatible with multiple voltage specifications and mainstream CAN bus communication protocols, ensuring stable signal transmission without lag and accurate data without delay. In addition, the dashboard supports backlight adjustment, parameter reset, and other basic customization functions, which can be flexibly adapted to various working conditions according to different operating environments.
This industrial electric vehicle integrated dashboard adopts a highly integrated modular design. The integrated structure of the dashboard significantly simplifies the wiring of the entire vehicle, reduces interface faults, and effectively lowers the assembly and later maintenance costs of the dashboard. The entire machine adopts an industrial-level sealed protection structure, combined with built-in shock absorption design, making this dashboard have excellent dustproof, moisture-proof, anti-vibration, and anti-electromagnetic interference capabilities. It can be adapted to complex and harsh working conditions such as warehouses, factories, and outdoor construction sites, supporting long-term and high-frequency continuous operation of the vehicle, ensuring the long-term stable operation of the dashboard. The product has extremely strong versatility. This dashboard is compatible with 24V/48V/80V multi-voltage models, covering the vast majority of industrial electric storage and handling vehicles. The dashboard is easy to install, has high compatibility, and strong stability, and can meet the modification and replacement needs of various vehicle models.

Technical Parameters of DZB7204T-SDY industrial vehicle monochrome dot matrix screen

Question & Answer of DZB7204T-SDY industrial vehicle monochrome dot matrix screen

Q: What is the function and application of DZB7204T-SDY industrial vehicle monochrome dot matrix screen?

A:Designed for industrial vehicles, the DZB7204T-SDY features a 128x64 monochrome dot matrix screen, delivering clear data display for on-board monitoring. It supports 8~36V wide voltage input and operates stably in -30℃~80℃ harsh environments, with IP65 protection against dust and water splashes.

Q:What quality standards and certifications does our DZB7204T-SDY industrial vehicle monochrome dot matrix screen comply with?

A:We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.

Q: What range of services does Shinny offer to support clients?

A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.

Q: How Shinny provide after-sale services of DZB7204T-SDY industrial vehicle monochrome dot matrix screen?

A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides,  which promise that we always provide attentive and reliable after-sales service.

Q: What are the standard shipping and logistics processes for delivering orders?

A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
