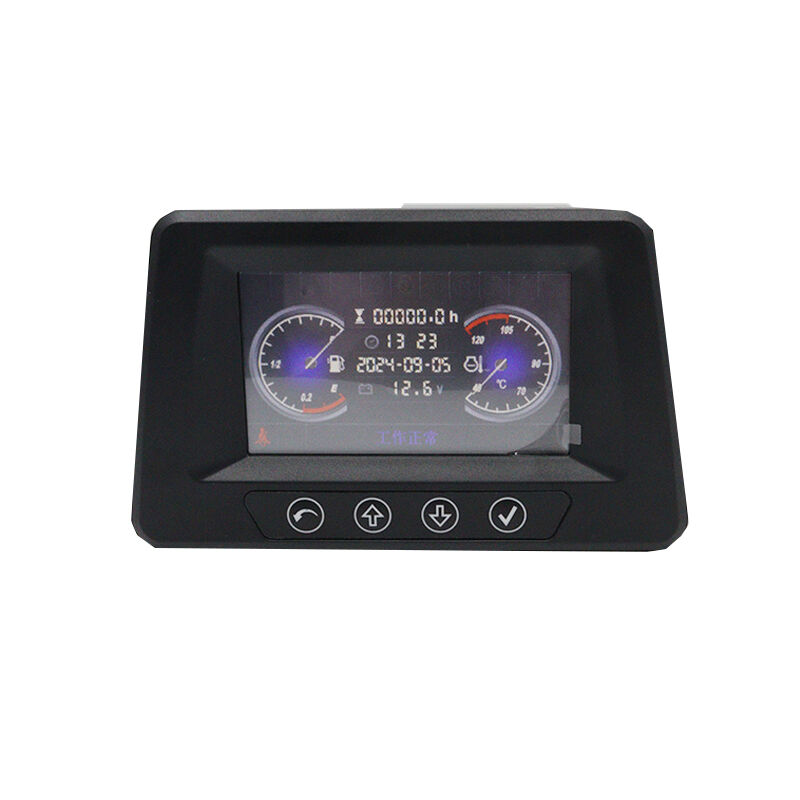

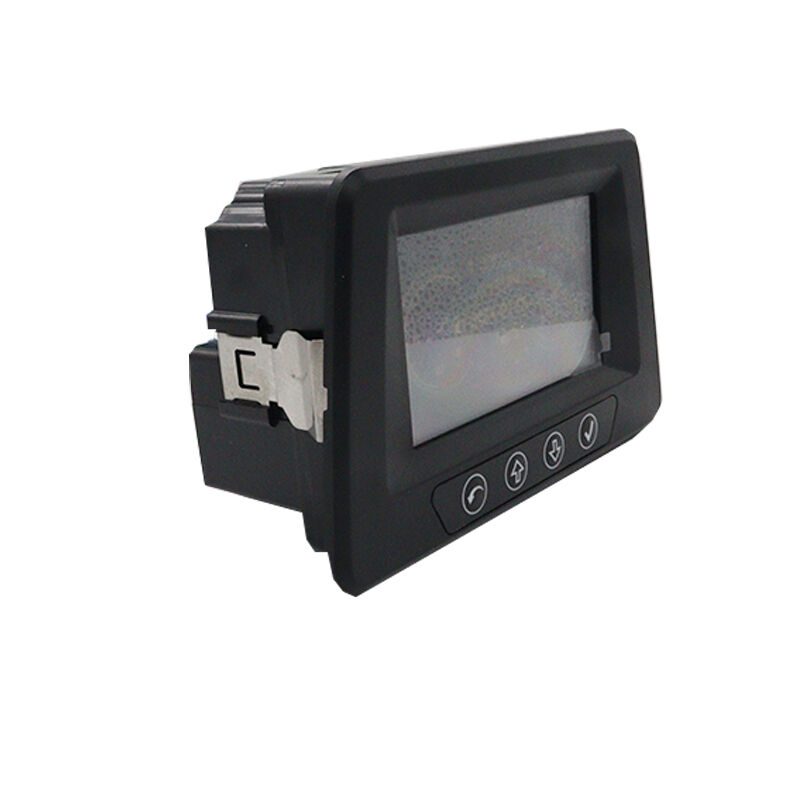

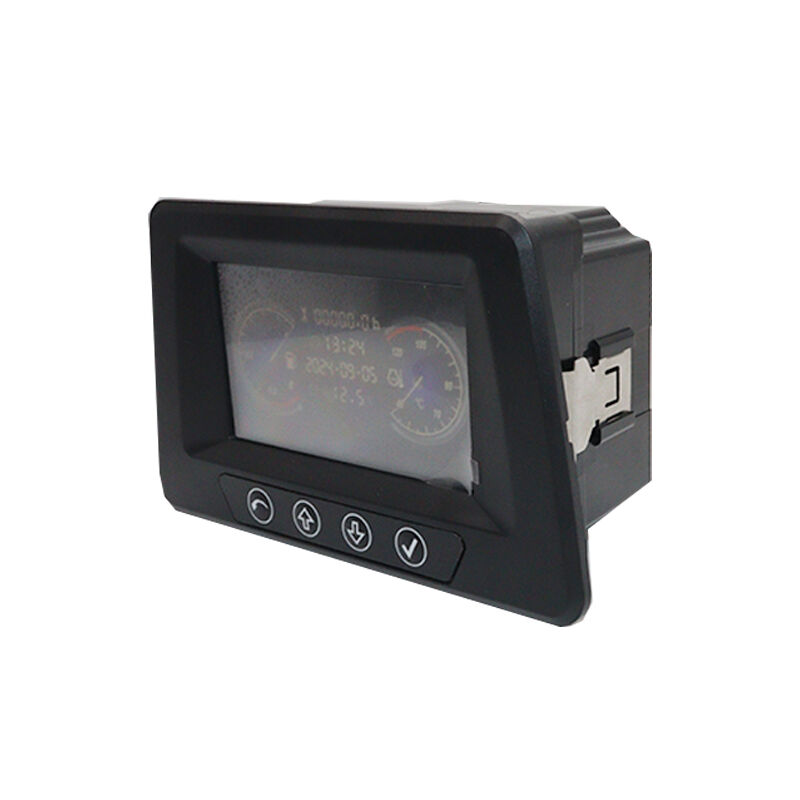

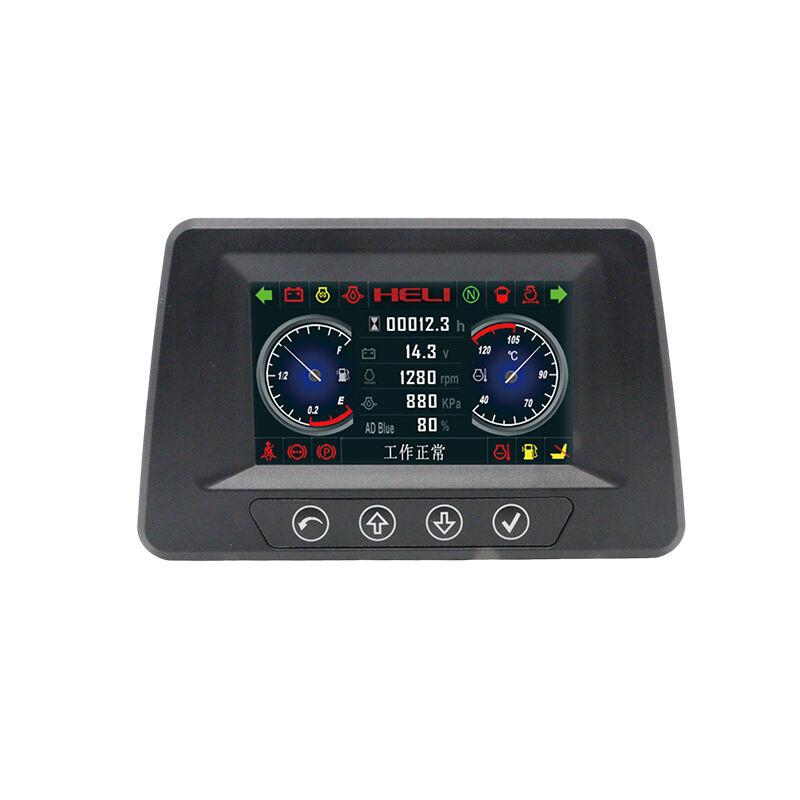

High-definition Digital Display Forklift Dashboard with CAN Communication and IP54 Waterproof for Industrial Vehicles

24V/48V/80V universal digital forklift dashboard

The high-definition digital multi-function on-board status monitoring forklift combination dashboard is the core supporting dashboard for electric forklifts and warehouse operation vehicles. This dashboard features high-definition digital display, all-round monitoring, stability and durability. It is an upgraded intelligent dashboard that replaces traditional outdated ones. This dashboard is compatible with 24V, 48V, and 80V voltage models and is compatible with mainstream forklift brands such as Heli, Hanzhou Forklift, and Massey. It can meet scenarios such as new vehicle assembly, old vehicle repair replacement, and vehicle modification, and has extremely strong versatility. This dashboard is equipped with a high-definition display screen, with clear and transparent images, and is not affected by strong light or dust environments. Operators can view core data such as forklift battery power, voltage, working hours, gear position, and speed through the dashboard, and the overall vehicle operation status is clearly visible. The dashboard is equipped with an intelligent monitoring system that can monitor vehicle motors, batteries, circuits, and braking conditions 24/7. When there is an abnormality, the dashboard will trigger fault codes and light warnings to quickly identify potential hazards. The dashboard adopts an industrial-grade dust-proof, waterproof, and shock-resistant structure, suitable for high-frequency bumping operation scenarios of forklifts, effectively extending the service life of the dashboard. The integrated dashboard is easy to install and runs stably. This multi-functional forklift dashboard, with its precise monitoring, high-definition display, and durable construction, has become the preferred dashboard for the intelligent upgrade of industrial forklifts.

Technical Parameters of HZB917M-HL

Core Advantages of HZB917M-HL

1. 32-bit Cortex M3 main control chip.
2. Timing accuracy: 0.1h; timing data is non-volatile when power is off.

Question & Answer of HZB917M-HL

Q: What is the function and application of HZB917M-HL?

A:Designed specifically for forklift timing display scenarios, this Forklift Hour Meter is a reliable and durable timing solution tailored to industrial vehicle needs. Equipped with an HT1621 dot matrix screen, it delivers clear and intuitive timing readouts for easy operational monitoring. Built to adapt to harsh industrial environments, the meter features a wide operating temperature range of -30℃～75℃ and supports both 12V and 24V power systems, ensuring stable performance across various forklift models. With an IP65 front protection class, it effectively resists dust and water splashes, safeguarding internal components from environmental damage.

Q:What quality standards and certifications does our HZB917M-HL comply with?

A:We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.

Q: What range of services does Shinny offer to support clients?

A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.

Q: How Shinny provide after-sale services of HZB917M-HL ?

A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides,  which promise that we always provide attentive and reliable after-sales service.

Q: What are the standard shipping and logistics processes for delivering orders?

A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
