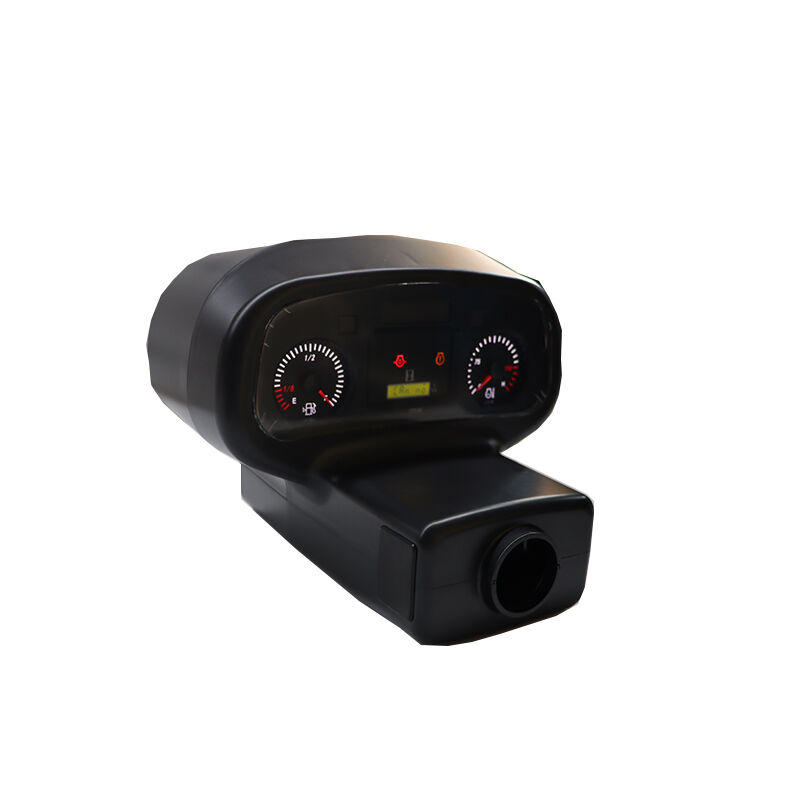

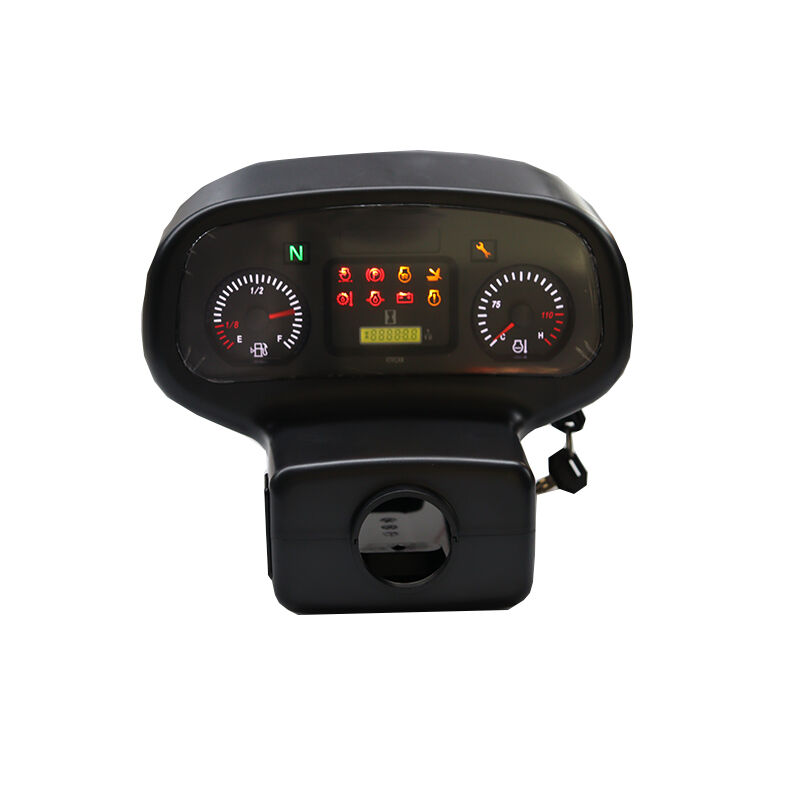

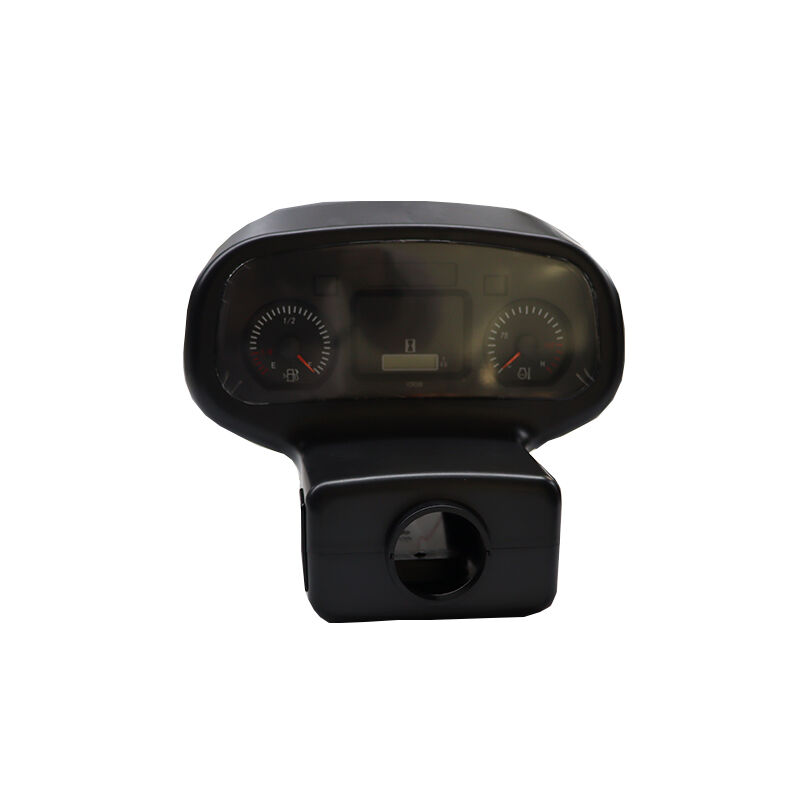

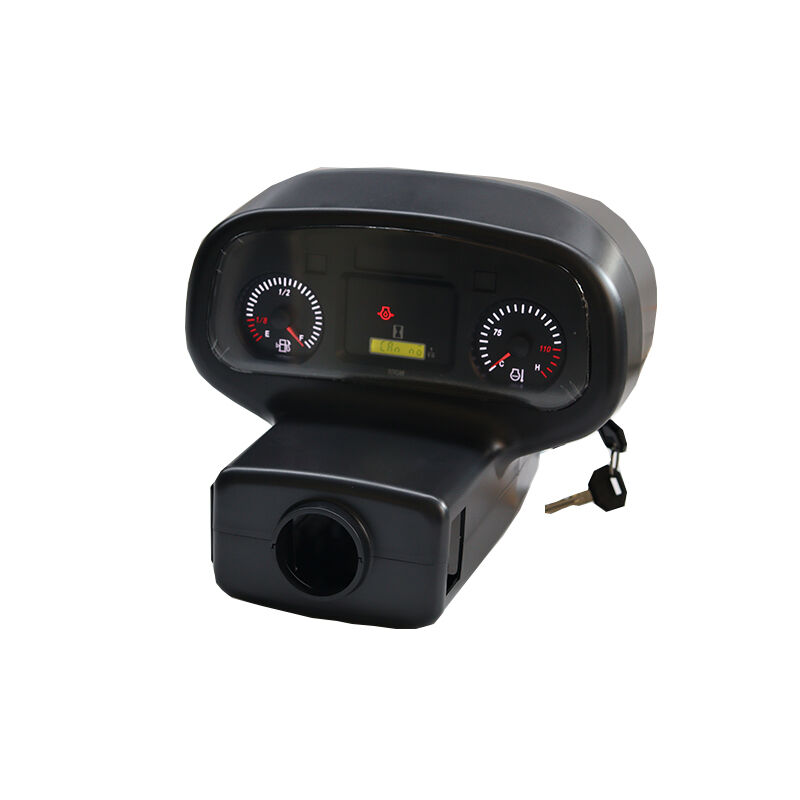

HZB909YCAN-SLJ Low-power Consumption Front-Enclosed Digital Forklift Combined Dashboard with Long-Lasting Battery and Automatic Work Time Recording
The HZB909YCAN-SLJ low-power digital forklift dashboard with front enclosure is a dedicated dashboard designed for various electric forklifts. This dashboard is equipped with a low-power chip solution, resulting in extremely low standby power consumption for the entire machine. This enables the dashboard to achieve long-term power conservation, ensuring no concerns about insufficient power supply during long-term operations. The dashboard comes with an integrated front enclosure structure, which is installed to fit the cab, providing stable protection for the internal display components of the dashboard. Dust and oil contamination are less likely to invade the dashboard.
This dashboard supports the automatic time statistics function. The dashboard can accurately record the total operation time of the forklift, and the data is permanently stored within the dashboard. It will not be lost even in the event of power failure. This facilitates fleet management and maintenance cycle planning. The dashboard features high-definition digital display. The battery level, fault codes, and driving speed are simultaneously presented on the dashboard, making the readings clear and intuitive. The dashboard is compatible with CAN bus communication. Various vehicle signals are stably transmitted to the dashboard without any delay or lag.
The anti-seismic sealing process is applied to the dashboard, ensuring that the display on the dashboard remains stable and free from screen flickering even under the jarring conditions of the factory area. The lightweight front panel simplifies the assembly process of the dashboard, making it easier to disassemble and assemble the dashboard during maintenance. The low-power core design combined with the automatic timing function makes this dashboard both durable and practical. It is the preferred dashboard choice for warehouses and factory forklifts.
|
Operating Voltage |
DC12V/ DC24V |
|
Operating Temperature |
-20°C to 60°C |
|
Protection Level |
IP54 |
|
Connector Model |
HZB909YCAN-SLJ |
|
Install Way |
Steering Column Installation |
|
Display Language |
Chinese / English |
1. Wide Voltage Compatibility: support DC12V/24V dual system, the working voltage covers DC10-32V, easy to cope with voltage fluctuations.
2. Full Environmental Adaptation: Stable operation under extreme temperatures of -30℃~80℃, reliable in both cold and heat.
3. Multi-dimensional Monitoring: integrated oil/water temperature/timing 3-in-1 display, 14 kinds of LED status indication (including charging, oil pressure, etc.), instant warning of hidden faults.
4. Ultra-low Power Consumption: dynamic operating current ≤ 700mA, standby power consumption of only 2mA, worry-free range.
5. Strong Protection: IP55 dustproof and waterproof, excellent performance in vibration and humidity environment.
Q: What is the function and application of forklift dashboard HZB909YCAN-SLJ?
A: HZB909YCAN-SLJ is a high-performance all-digital forklift dashboard, specially designed for various industrial and engineering vehicles. It adopts an open system platform, supporting rich vehicle parameter display and input, and integrates powerful vehicle networking functions, including video surveillance, biometric login, BSD blind spot monitoring, etc. The product features excellent vibration resistance and a high protection level, making it an ideal intelligent interactive terminal for modern heavy machinery vehicles.
Q:What quality standards and certifications does our forklift dashboard HZB909YCAN-SLJ comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of forklift dashboard HZB181A?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
