Place of Origin:
Hefei, Anhui, China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
HZB181CAN-HL

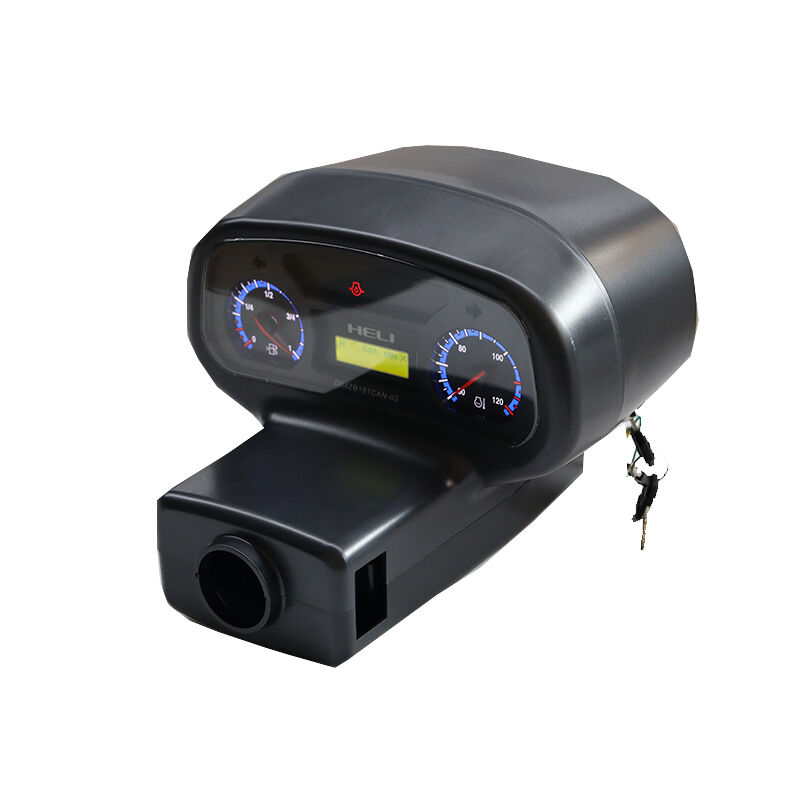

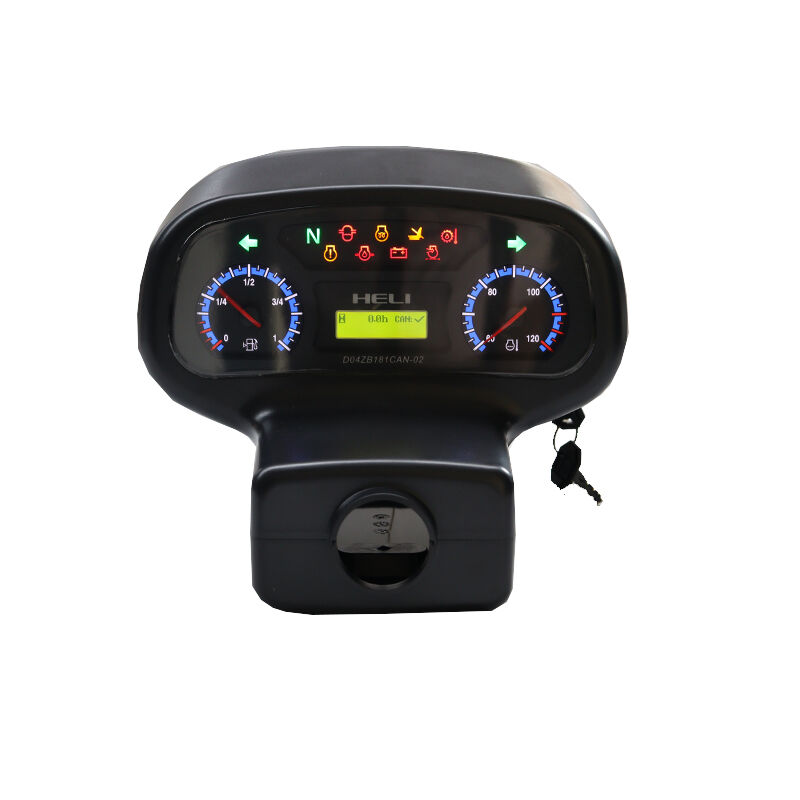

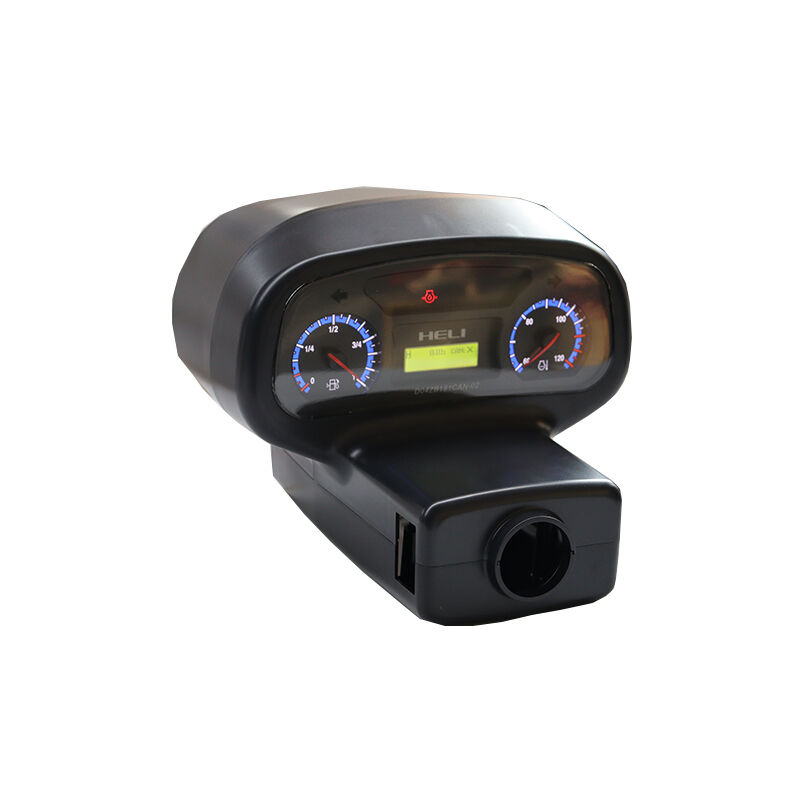

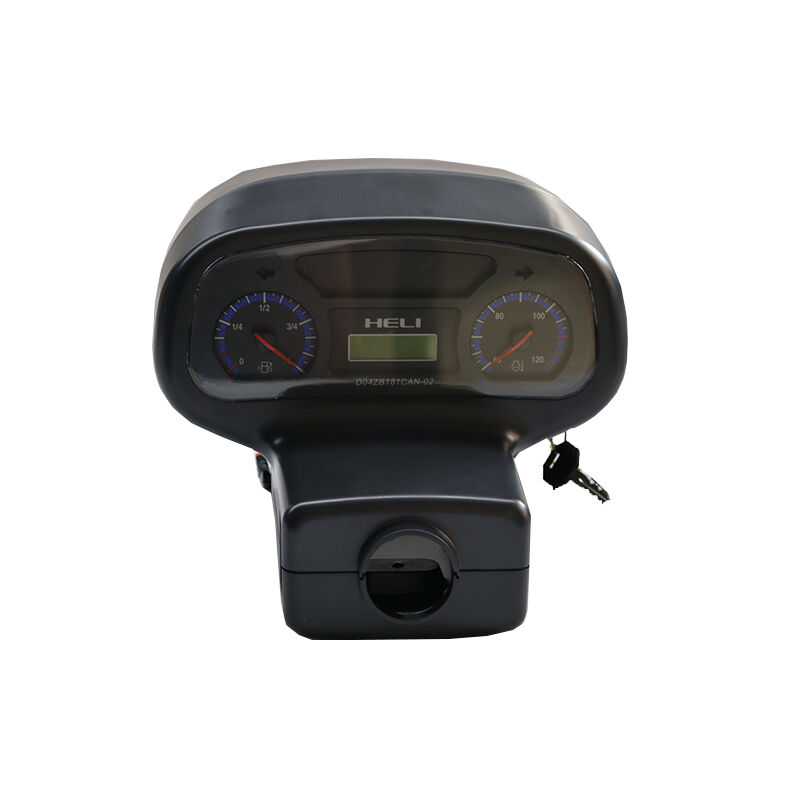

HZB181CAN-HL Customized engineering dashboard, modular hardware, rapid adaptation and debugging of complete vehicle solutions
The customized engineering dashboard is equipped with modular hardware design, enabling rapid adaptation and debugging of the entire vehicle solution. The entire dashboard display adopts a modular separate structure, allowing for the replacement of functional components without the need to replace the entire dashboard display. For different equipment such as excavators, loaders, and mining machines, only the corresponding functional modules need to be adjusted to match the dashboard display, significantly shortening the development and debugging cycle of the dashboard display. Standardized universal interfaces can quickly connect to the vehicle's wiring, and the parameters of the dashboard display can be set up within a short period of time.
The modular hardware effectively reduces the cost of customizing the dashboard display. The unified base can be paired with multiple functional modules, reducing the investment in dashboard display mold production. Customers can select high-brightness, CAN communication, and pressure monitoring modules as per their needs to create a dedicated dashboard display. The sealed and shock-resistant shell provides comprehensive protection for the dashboard display, and dust and vibration from the construction site will not damage the internal components of the dashboard display.
The high-definition display panel enables the dashboard display to clearly display all the operating data of the equipment, and multiple signals are simultaneously transmitted to the dashboard display. The simple disassembly and assembly structure facilitates later maintenance of the dashboard display, and replacing the faulty module alone can repair the dashboard display. The flexible adaptation and efficient debugging characteristics make this dashboard display the preferred choice for various engineering vehicles.
|
Operating Voltage |
DC12V/ 24V |
|
Operating Temperature |
-30°C to 75°C |
|
Protection Level |
IP54 |
|
Connector Model |
DJ7161-2.3-21 16pin |
|
Communication Way |
CAN Communication |
|
Display Language |
Chinese / English |
1. Wide Voltage Compatibility: support DC12V/24V dual system, the working voltage covers DC10-32V, easy to cope with voltage fluctuations.
2. Full Environmental Adaptation: Stable operation under extreme temperatures of -30℃~80℃, reliable in both cold and heat.
3. Multi-dimensional Monitoring: integrated oil/water temperature/timing 3-in-1 display, 14 kinds of LED status indication (including charging, oil pressure, etc.), instant warning of hidden faults.
4. Ultra-low Power Consumption: dynamic operating current ≤ 700mA, standby power consumption of only 2mA, worry-free range.
5. Strong Protection: IP55 dustproof and waterproof, excellent performance in vibration and humidity environment.
Q: What is the function and application of forklift dashboard HZB181CAN-HL?
A: HZB181CAN-HL is a multifunctional forklift dashboard with a hybrid display of pointer and digital screen, specially designed for all kinds of engineering vehicles. It supports rich vehicle parameter input and indication, and integrates advanced Internet of Vehicles functions, including communication positioning, video surveillance and multiple biometric login methods. The product features a wide voltage operating range and a high protection level, ensuring stable operation under harsh working conditions.
Q:What quality standards and certifications does our forklift dashboard HZB181CAN-HL comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of forklift dashboard HZB181CAN-HL?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
