Place of Origin:
Hefei，Anhui，China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
ZB030048012TA-XB2

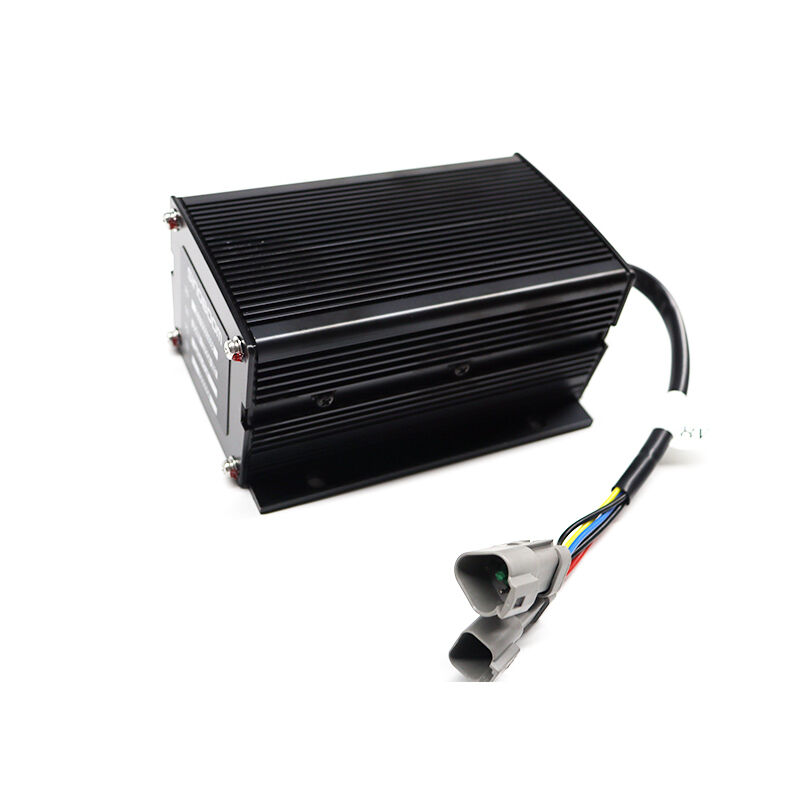

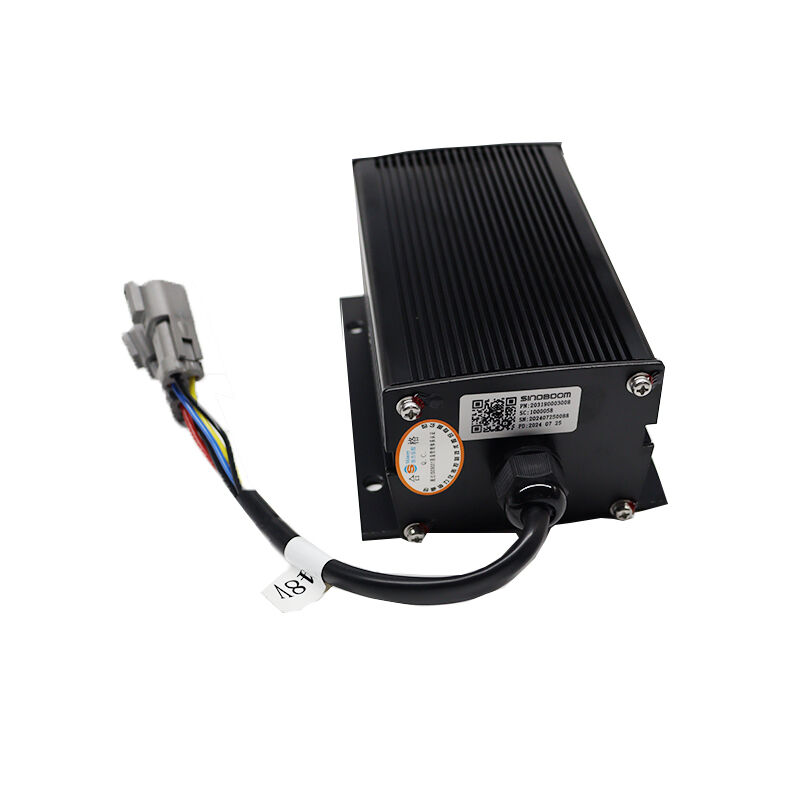

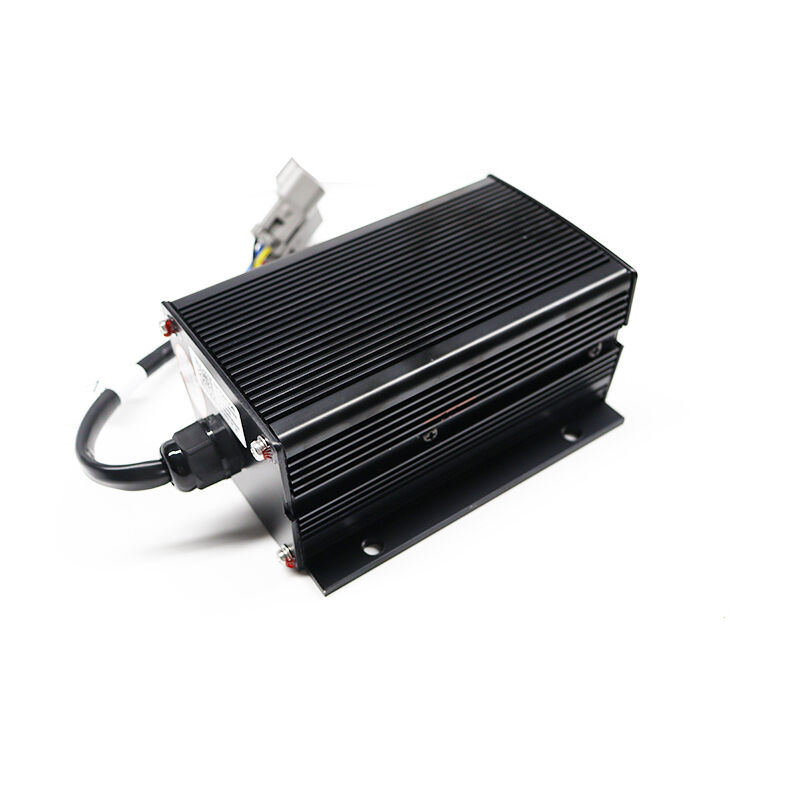

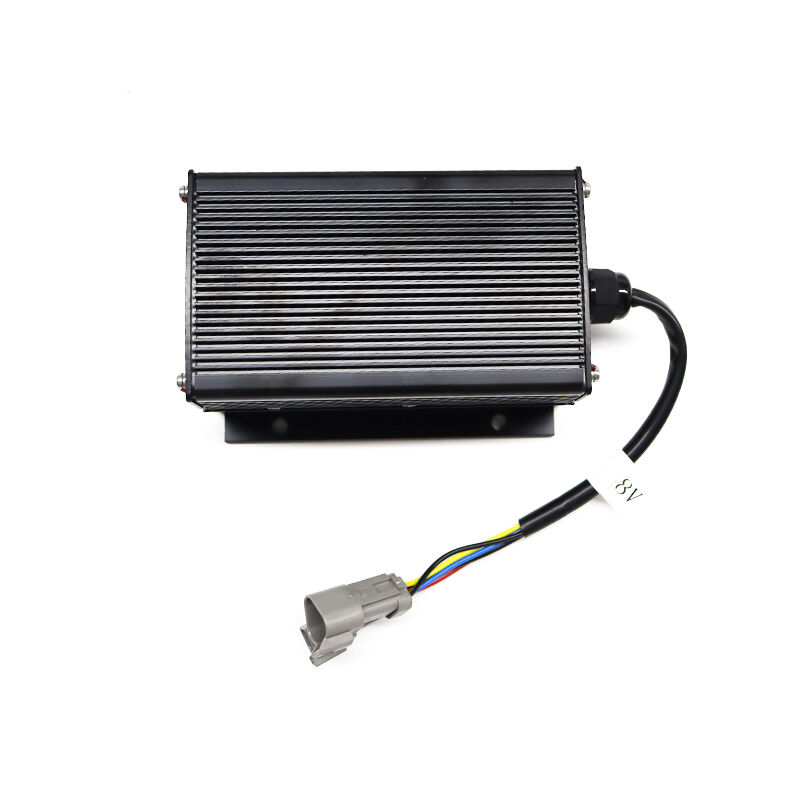

ZB030048012TA-XB2 Forklift DCDC Converter - Non-contact Switch Technology - Low Fault Vehicle Power Supply Unit
ZB030048012TA-XB2 forklift DCDC converter is a low-fault on-board power supply unit that employs contactless switch technology. This forklift DCDC converter eliminates the traditional mechanical contact structure. During its operation, no arcs are generated, significantly reducing the risk of wear and effectively lowering the failure probability. The forklift DCDC converter adopts an efficient conversion scheme, with low power loss and excellent temperature rise control, suitable for forklifts with frequent starting and stopping and long-term continuous operation scenarios.
The forklift DCDC converter is equipped with full-dimensional data monitoring functions, which can collect voltage and current parameters in real time. Combined with pre-charge protection functions, it buffers the power-on shock and protects the forklift DCDC converter and the vehicle's electronic control components. The forklift DCDC converter has rich interface expansion capabilities and supports flexible remote control, enabling data storage and export.
The forklift DCDC converter has an intelligent low-battery alert function, promptly warning of abnormal voltage. The entire machine is shock-resistant and dust-proof, adaptable to complex working conditions in warehouse workshops. Multiple lithium-ion forklifts can be equipped with the forklift DCDC converter. Thanks to its contactless long-term stable characteristics, the forklift DCDC converter reduces the subsequent maintenance costs and provides a persistent and secure DC power supply guarantee for vehicle instruments, networked terminals, and other equipment.
| Input Voltage Range | 24-75V |
| Rated Output Voltage | 12.5V |
| Rated Output Current | 10A |
| Rated Output Power | 125W |
| Connector Model | AMP350779-4 |
| Protection Level | IP65 |
1. Safety isolation design: It adopts an isolated topology structure to achieve electrical isolation of high and low voltage circuits, effectively preventing safety risks and equipment interference caused by potential differences, and ensuring higher system safety.
2. Wide input voltage and efficient output: The wide input range of 24-75V ADAPTS to the voltage fluctuations of vehicle batteries, with high power conversion efficiency, effectively reducing energy consumption and heat loss.
3. Comprehensive fault protection mechanism: It provides multiple protections such as input undervoltage/overvoltage and output overvoltage/overcurrent/short circuit, automatically responding to abnormal working conditions to ensure the continuous and stable operation of power supply and equipment.
4. High-level protection: With an IP65 protection rating, it is dust-proof and water-proof, fearless of harsh environments, ensuring high reliability and long service life in complex working conditions.
5. Flexible configuration options: Supports the optional combination of DC and BC functions to meet the system integration needs of different customers, which helps optimize spatial layout and reduce total costs.
Q: What is the function and application of DC DC Converter ZB030048012TA-XB2?
A: ZB030048012TA-XB2 is an isolated DC-DC converter, featuring a wide-voltage input of 24-75V, a stable output of 12.5V/10A, and a rated power of 125W. The product is equipped with comprehensive protection for input undervoltage/overvoltage and output overvoltage/overcurrent/short circuit, etc. It features high conversion efficiency and supports the optional combination of DC and BC. It is suitable for applications with strict safety isolation requirements, such as electric vehicles and motorcycles.
Q:What quality standards and certifications does our DC DC Converter ZB030048012TA-XB2 comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of DC DC Converter ZB030048012TA-XB2?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
