Place of Origin:
Hefei，Anhui，China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
TBRG4209

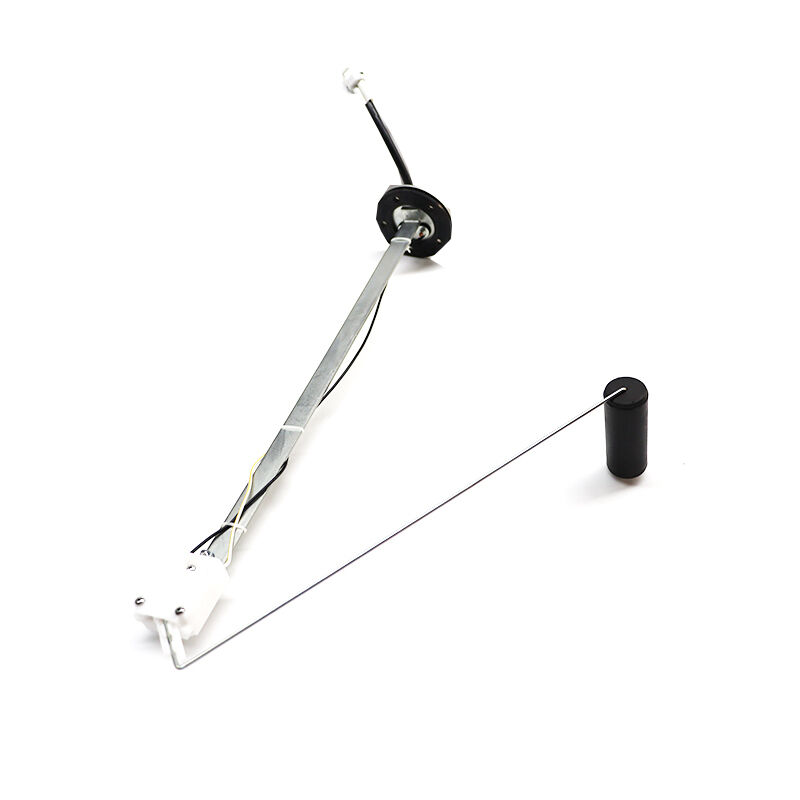

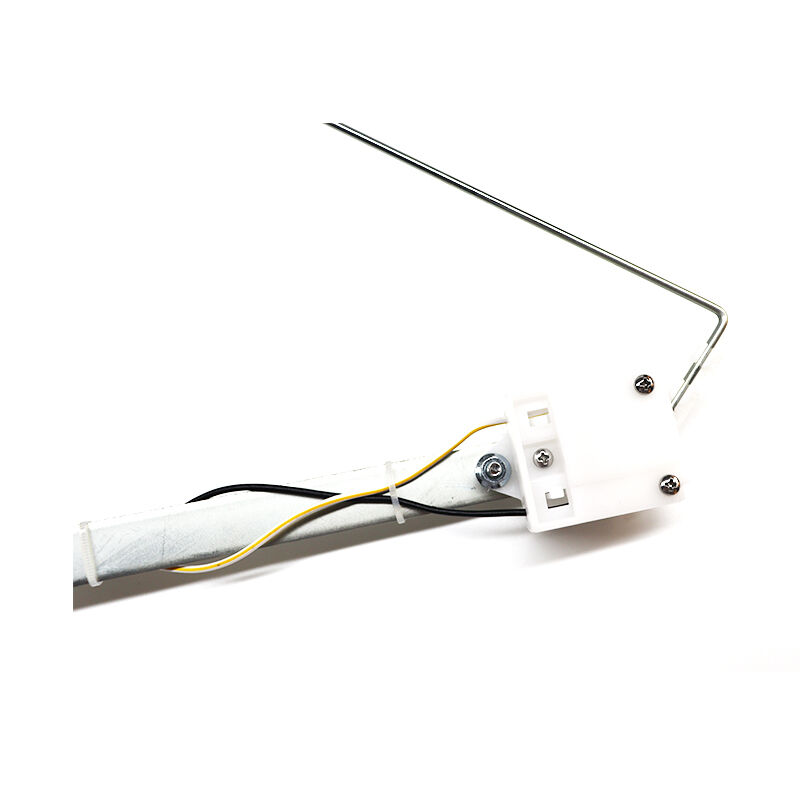

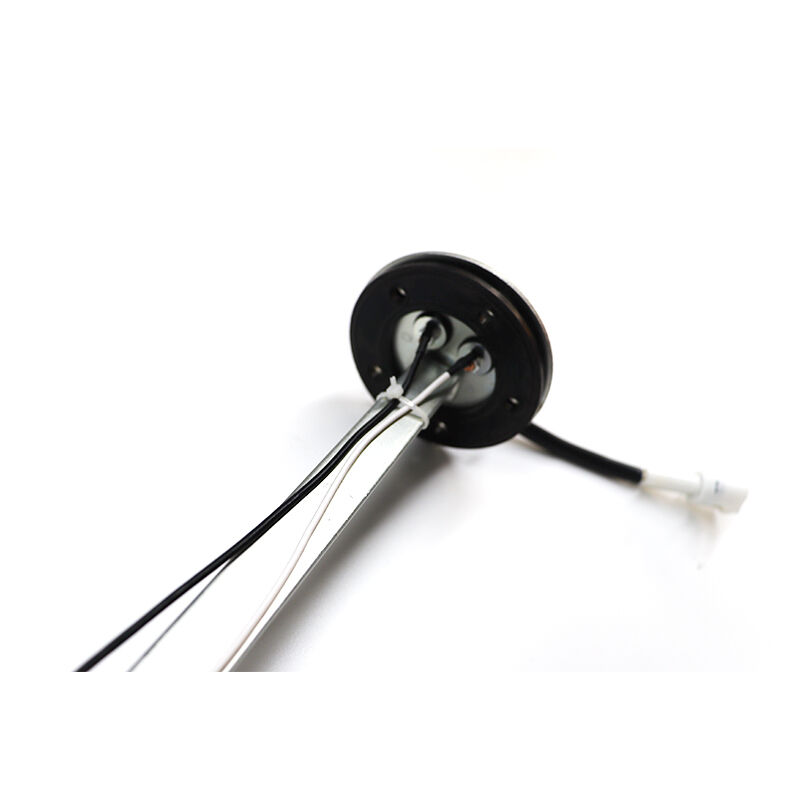

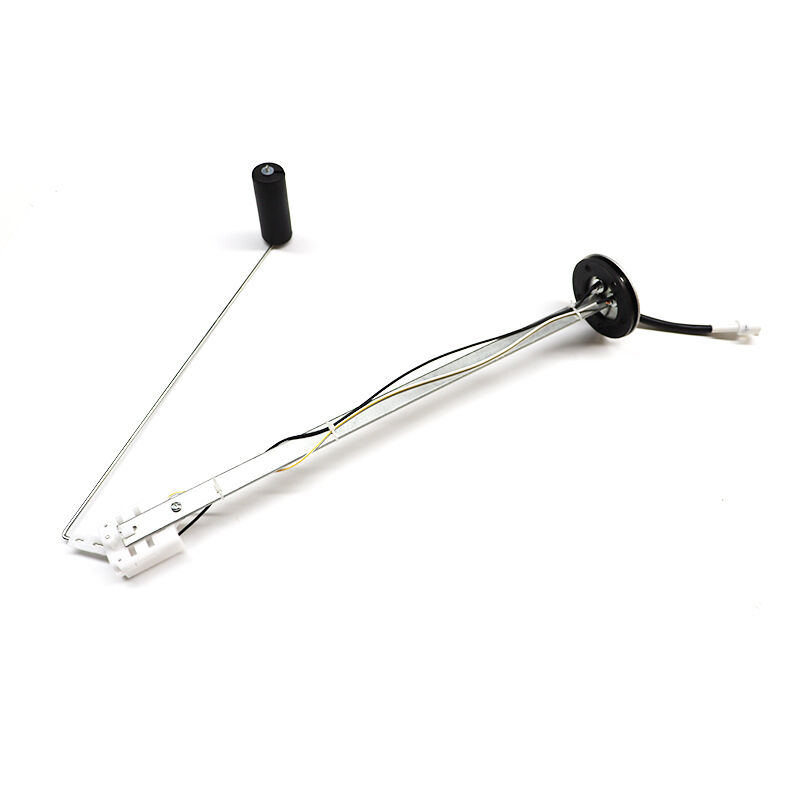

TBRG4209 Forklift Sensor - Stable Signal Output Fuel Level Sensing Device
The TBRG4209 forklift sensor is a fuel level sensing device with stable signal output. This forklift sensor can continuously collect the fuel level information of the fuel tank. The forklift sensor converts the changes in fuel level into continuous and stable electrical signals, effectively reducing signal fluctuations. The forklift sensor has excellent collection accuracy, reducing measurement deviations caused by fuel shaking, and ensuring the authenticity and reliability of the fuel quantity data.
The forklift sensor adopts a sealed and corrosion-resistant structure. It does not age easily when immersed in fuel for a long time and is suitable for the multi-contaminated working environment of internal combustion forklifts. The forklift sensor has outstanding shock resistance and can operate stably under the conditions of forklift starting and stopping, as well as bumpy driving. The forklift sensor can be connected to the on-board instrument and the remote information processing module to achieve real-time display of fuel quantity and data upload.
The forklift sensor is small in structure and easy to install and disassemble, suitable for the replacement of multiple internal combustion forklifts. The forklift sensor supports working in all weather conditions and temperature ranges, continuously providing fuel consumption data for the fleet. The stable and reliable signal output characteristic enhances the overall stability of the system. The forklift sensor helps the fleet conduct fuel consumption statistics and abnormal loss investigation. The forklift sensor is an important core component for oil quantity collection in the forklift vehicle Internet of Things.
|
Signal Output Mode |
Resistance value |
|
Definition of Dual-line Output |
Power Ground ,Signal Output |
| Measurement Accuracy |
F:90(10,0) E:10(3,-2) |
| Main Structure |
Clamp Arm Type 5-Hole Mounting |
| Service Life |
60000 Cycles |
| Connector Model |
7222-8520-40 Connector Housing: Yazaki 7222-8520-40 |
1. Extralong service life: With a service life of up to 60,000 times, it reduces the frequency of replacement and maintenance costs.
2. High-precision measurement: Measurement accuracy F:90(10,0), ensuring accurate and reliable fuel data.
3. Robust structure and easy installation: The transmissive design and 5-hole installation make it suitable for complex work and flexible installation.
4. Excellent protective performance: The sheath material is swan grade, providing a high level of durable protection.
5. Wide applicability: It is suitable for all kinds of industrial equipment and engineering vehicles, with strong compatibility.
6. Flexible wiring design: The lead-out line length is 400mm, facilitating system integration and on-site installation.
Q: What is the function and application of forklift sensor TBRG4209?
A: The TBRG4209 forklift fuel sensor adopts image signal output and features high-precision measurement capability (F:90(10,0)), with a service life of up to 60,000 times. The transmission structure and 5-hole installation design are suitable for various industrial and engineering vehicles, providing stable and reliable fuel monitoring. The sheath material is of high quality and has strong adaptability, meeting the requirements of complex working conditions.
Q:What quality standards and certifications does our forklift sensor TBRG4209 comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of forklift sensor TBRG4209?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
