Place of Origin:
Hefei，Anhui，China
Brand Name:
Shinny
Certification:
Certification Support, Customizable Services
Model Number:
ZB030080012TZ-XB1

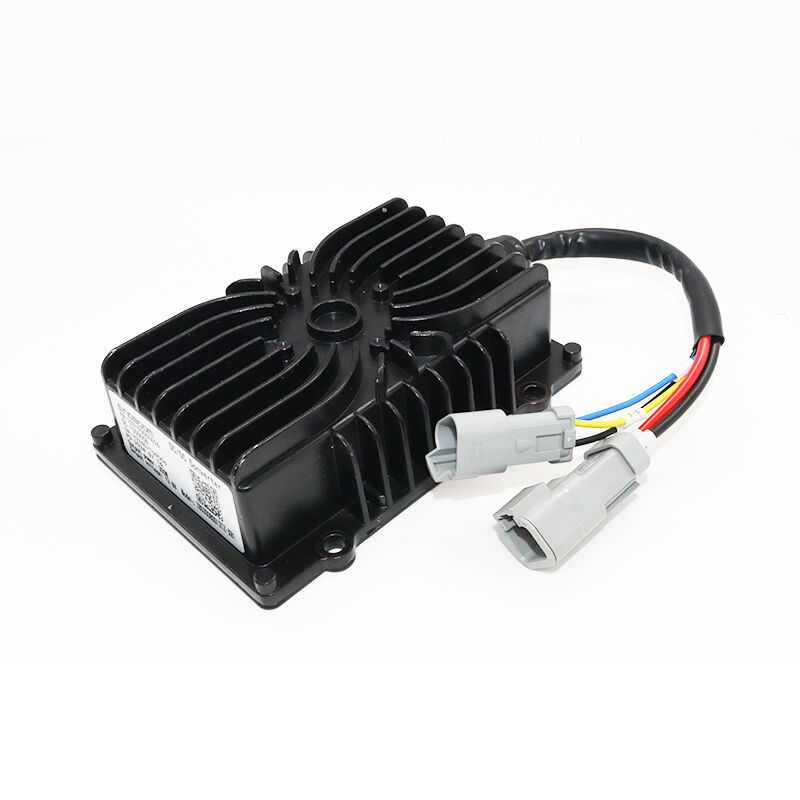

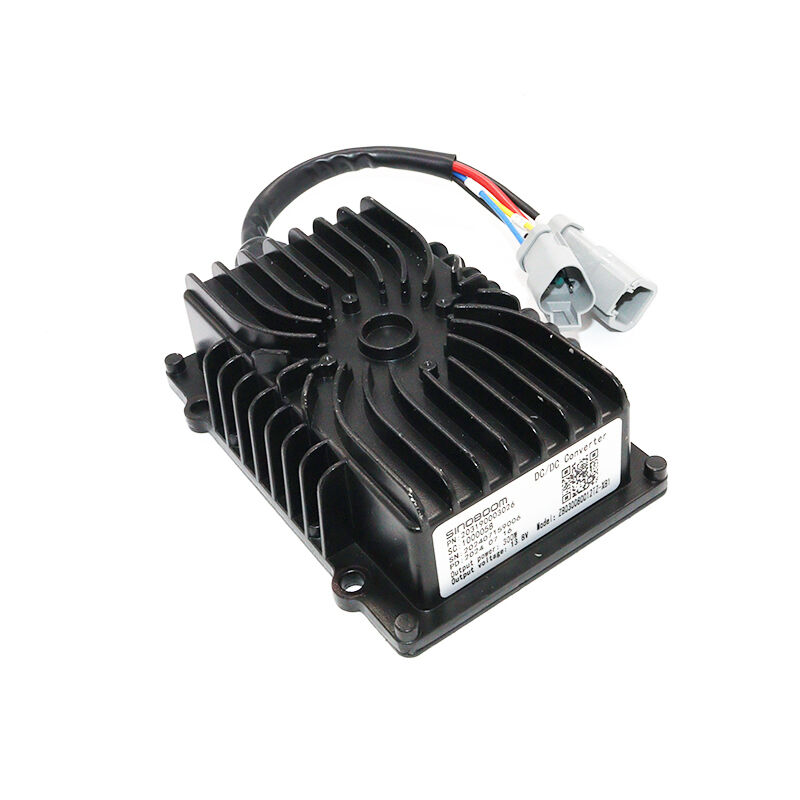

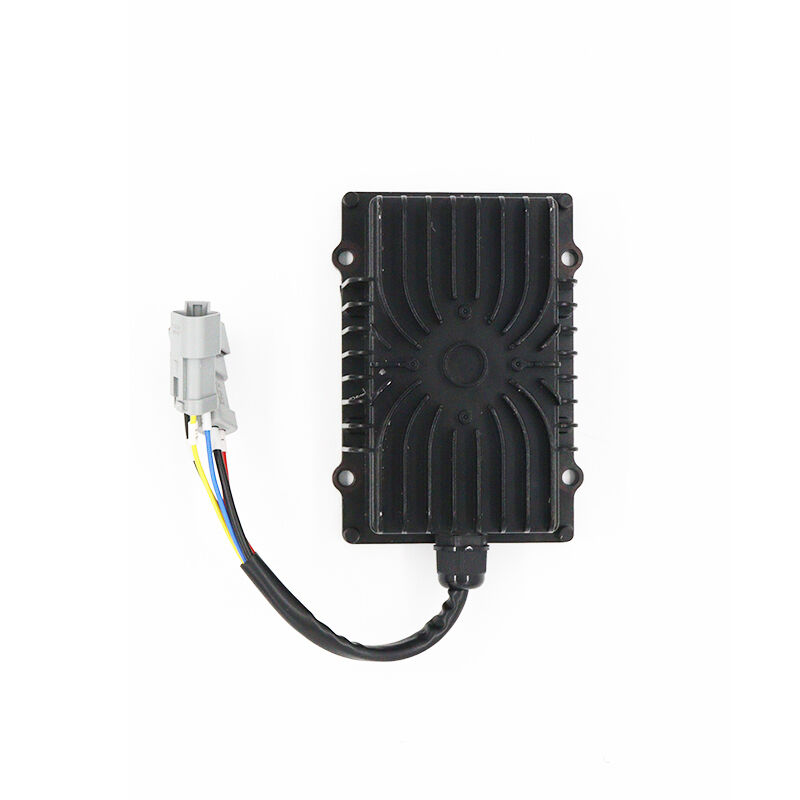

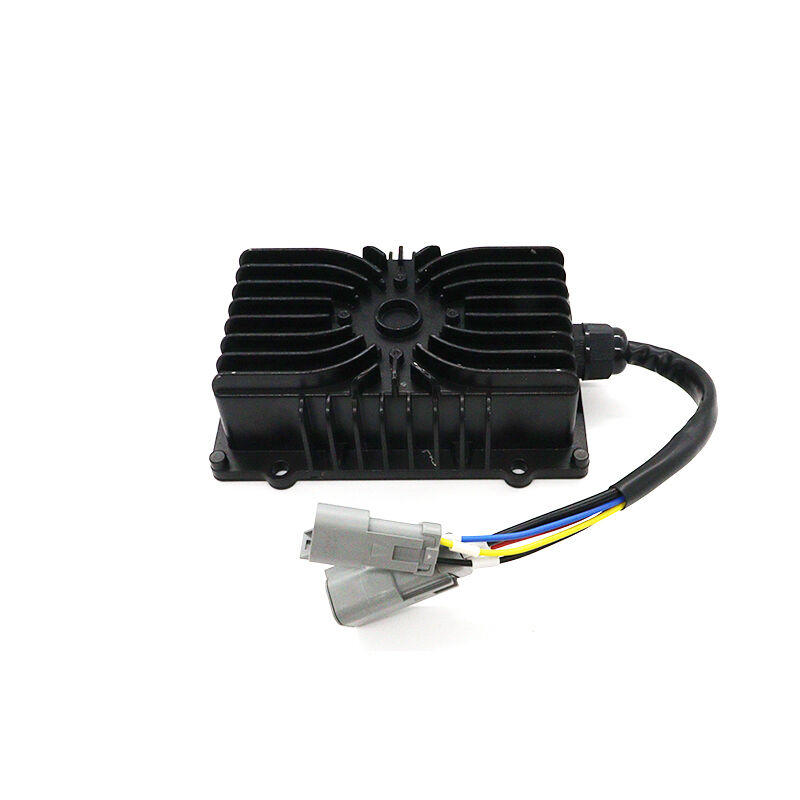

ZB030080012TZ-XB1 Forklift DC-DC converter, full-dimensional data monitoring, on-board power supply intelligent control module
ZB030080012TZ-XB1 forklift DCDC converter is a smart control module for on-board power supply that features full-dimensional data monitoring. This forklift DC-DC converter can collect electrical parameters such as voltage and current in real time. The forklift DC-DC converter monitors the power supply operation status of the entire vehicle 24/7 and realizes integrated intelligent control of the on-board power supply. The forklift DCDC converter adopts an efficient conversion scheme with low operating loss and controllable temperature rise, meeting the power supply requirements for long-term continuous operation of the forklift.
The forklift DCDC converter is equipped with contactless switch technology, with no arc wear during start and stop, and is paired with pre-charging protection function to alleviate the impact of power-on and effectively protect the forklift DCDC converter and the vehicle's electronic control components. The forklift DCDC converter supports a wide range of interface expansion and can be connected to on-board networked terminals. It relies on flexible remote control to remotely view the operation status.
The forklift DCDC converter has built-in data storage and export functions, which completely retain operation and fault records. When the battery voltage is low, the forklift DCDC converter automatically triggers an intelligent low-voltage alarm. The entire machine is resistant to vibration, dust, and moisture, and is suitable for complex working conditions in the factory. Various lithium-ion forklifts can be equipped with the forklift DCDC converter, relying on the real-time monitoring of the power supply status by the forklift DCDC converter to reduce vehicle electrical faults and provide stable and reliable DC power supply guarantee for the vehicle's electronic control equipment.
| Input Voltage Range | 32V-72V |
| Rated Output Voltage | 12.5V |
| Rated Output Current | 24A |
| Rated Output Power | 300W |
| Connector Model | AMP174359-2 / AMP6-176143-6 |
| Protection Level | IP65 |
1. Industrial-grade wide-voltage input: 32-72V ultra-wide input range, specially designed for industrial vehicle power systems with severe voltage fluctuations, its adaptability and stability far exceed those of ordinary products.
2. Safety isolation design: By adopting isolation conversion technology, an electrical barrier is established between high and low voltage circuits, effectively preventing interference and leakage risks, and ensuring the absolute safety of the control system.
3. Comprehensive electrical protection: It integrates all-round protection functions from input reverse connection to output short circuit, just like equipping the electrical system with an "all-round guardian", with extremely high reliability.
4. Ultimate environmental adaptability: The IP65 protection rating offers top-notch dust and water resistance, ensuring the power supply can operate stably for a long time even in extremely harsh industrial environments.
5. Specialized for industrial scenarios: Optimized for the electrical requirements and installation conditions of industrial equipment such as electric forklifts, it is an ideal choice for heavy-load and high-frequency industrial applications.
Q: What is the function and application of DC DC Converter ZB030080012TZ-XB1?
A: ZB030080012TZ-XB1 is an industrial-grade isolated DC-DC conversion power supply, featuring an ultra-wide input voltage range of 32-72V, a stable output of 12.5V/24A, and a rated power of up to 300W. The product integrates comprehensive protection against reverse input connection, undervoltage/overvoltage and output short circuit, adopts isolation design, and has a protection level of IP65. This forklift DC DC converter is specially designed for harsh industrial environments such as electric forklifts to ensure the stable and reliable operation of the power system.
Q:What quality standards and certifications does our DC DC Converter ZB030080012TZ-XB1 comply with?
A: We can support certifications such as CE and UL for different export regions. Additionally, our products undergo a series of tests including waterproof testing, high-temperature resistance testing, aging testing, and salt spray testing. This ensures a 95% pass rate for quality testing and a 100% pass rate for product delivery.
Q: What range of services does Shinny offer to support clients?
A: Shinny delivers professional customized services, we provide design, sample test, and manufacture tailored products according to client requirements. We also provide integrated system solutions alongside products, offering one-stop services to efficiently advance the intelligent and electrified transformation of industrial development.
Q: How Shinny provide after-sale services of DC DC Converter ZB030080012TZ-XB1?
A: We have a dedicated team of after-sales engineers and an overseas marketing team, offering 24/7 online support,comprehensive product manuals and repair guides, which promise that we always provide attentive and reliable after-sales service.
Q: What are the standard shipping and logistics processes for delivering orders?
A: We strictly adhere to packaging standards to ensure product safety during transit. Partnering with international couriers such as UPS and FedEx, we guarantee timely delivery.
